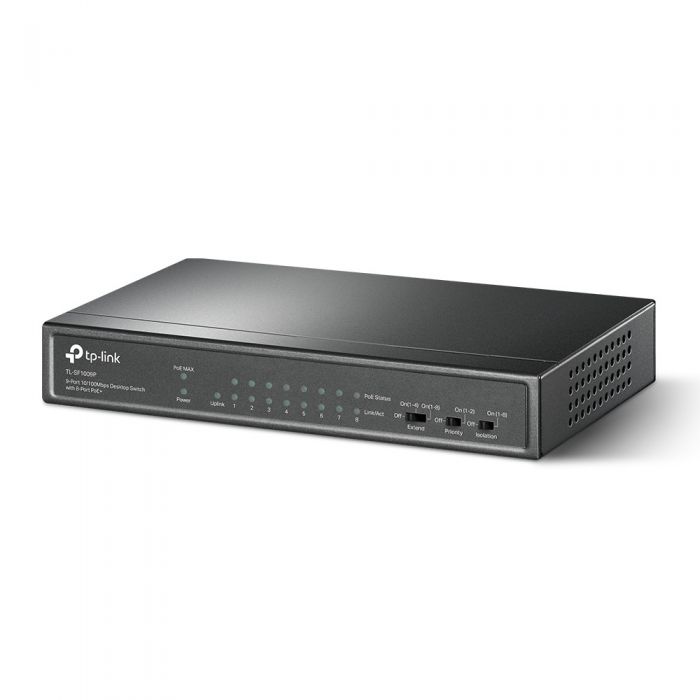

TPLink TL-SF1009P 9 Port 10/100 Desktop Switch (8 PoE Ports)
£65.00
£69.00
SKU
SK-20334
Availability:
In stock
- TPLink TL-SF1009P
- 9 RJ45 Port
- 10/100
- Desktop Switch
- (8 PoE Ports)
- Interface
• 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports)
• AUTO Negotiation
• AUTO MDI/MDIX - Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m) - Fan Quantity Fanless
- Physical Security Lock Yes
- External Power Supply External Power Adapter (Output: 53.5VDC / 1.31A)
- Packet Forwarding Rate 1.3392 Mpps
- PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–8
• Power Supply: 65 W - Mac Address Table 2K
- Jumbo Frame 2 KB
- Switching Capacity 1.8 Gbps
- Dimensions ( W x D x H ) 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
- Max Power Consumption
• 3.6 (220/50 Hz. no PD connected)
• 77.08 (220/50 Hz. with 65 W PD connected) - Max Heat Dissipation
• 12.28 BTU/h (no PD connected)
• 262.84 BTU/h (with 65 W PD connected) - Transmission Method Store-And-Forward
- Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission)
• Priority Mode Button (Ports 1–2)
• Isolation Mode Button (Ports 1–8)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode - Certification FCC, CE, RoHS
- Package Contents
• TL-SF1009P
• Power Adapter
• Installation Guide - Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
