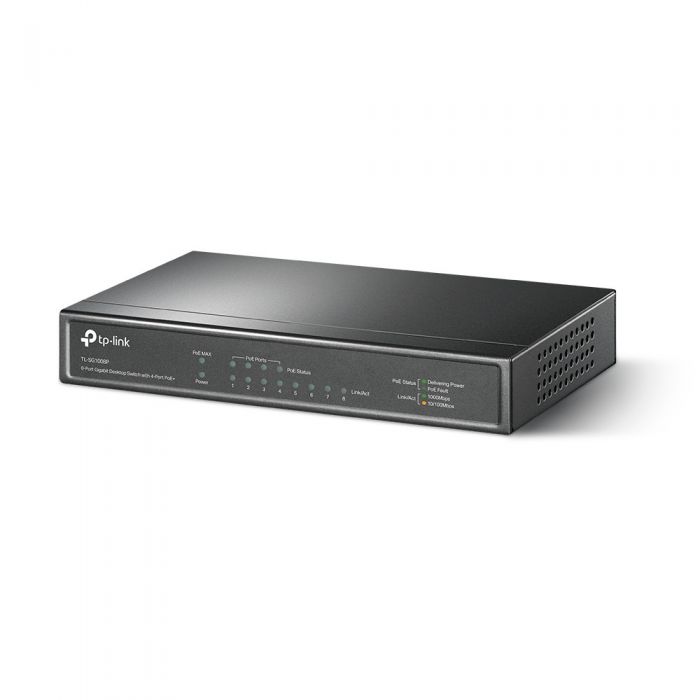

TP-LINK (TL-SG1008P) 8-Port Gigabit Switch, 4-Port PoE
£55.00
£65.00
SKU
SK-20169
Availability:
In stock
- TP-LINK (TL-SG1008P)
- 8-Port Gigabit Switch
- 4-Port PoE
- 171×98×27 mm
- HARDWARE FEATURES
Interface
• 8× 10/100/1000 Mbps RJ45 Ports
• AUTO Negotiation
• AUTO MDI/MDIX
Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter(Output: 53.5VDC / 1.31A)
Packet Forwarding Rate 11.904 Mpps
PoE Ports (RJ45)
• Standard: 802.3 af/at compliant
• PoE Ports: Ports 1–4
• Power Supply: 64 W
Mac Address Table 4K
Jumbo Frame 16 KB
Switching Capacity 16 Gbps
Dimensions ( W x D x H ) 6.7×3.9×1.1 in (171×98×27 mm)
Max Power Consumption
• 5.39 W (220/50 Hz no PD connected)
• 75 W (220/50 Hz with 64 W PD connected)
Max Heat Dissipation
• 18.38 BTU/h (no PD connected)
• 225.75 BTU/h (with 64 W PD connected) - SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs
• IGMP Snooping
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control
• 802.1p/DSCP QoS - OTHERS
Certification CE, FCC, RoHS
Package Contents
• TL-SG1008P
• Power Adapter
• Installation Guide
Environment
• Operating Temperature: 0–40 ℃ (32–104 ℉);
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
