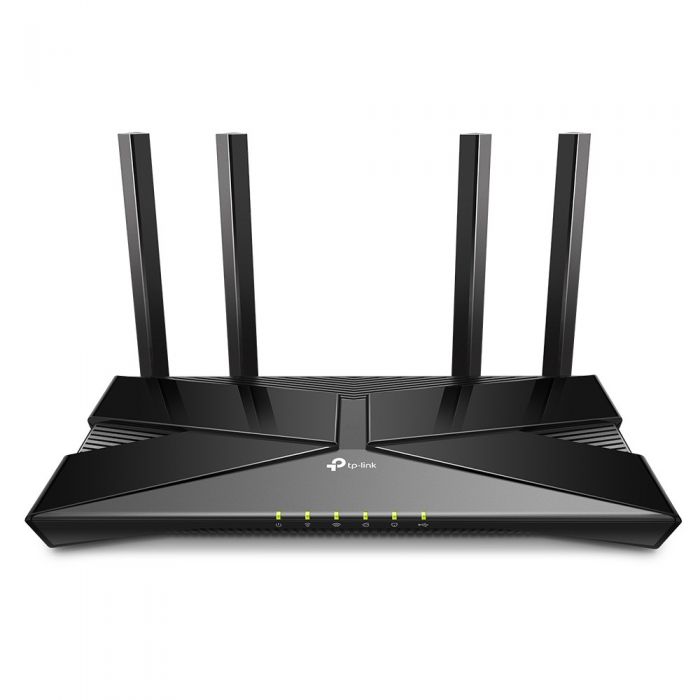

TP-LINK ARCHER AX50, AX3000 Dual-Band Wireless Router WiFi 6
£95.99
£105.99
SKU
SK-20209
Availability:
Out of stock
- TP-LINK ARCHER AX50 Wireless Router
- AX3000
- Dual-Band
- WiFi 6
- WIRELESS
Standards Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz
WiFi Speeds AX3000
5 GHz: 2402 Mbps (802.11ax, HE160)
2.4 GHz: 574 Mbps (802.11ax)
WiFi Range 3 Bedroom Houses4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas
Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range
High-Power FEM
Improves transmission power to strengthen signal coverage
WiFi Capacity HighDual-Band
Allocate devices to different bands for optimal performance
OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients
Airtime Fairness
Improves network efficiency by limiting excessive occupation
DFS
Access an extra band to reduce congestion
4 Streams
Connect your devices to more bandwidth
Working Modes Router Mode
Access Point Mode - HARDWARE
Processor Dual-Core CPU
Ethernet Ports 1× Gigabit WAN Port
4× Gigabit LAN Ports
Static Link Aggregation (LAG) available with 2× LAN ports
USB Support 1× USB 3.0 Port
Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32
Supported Functions:
Apple Time Machine
FTP Server
Media Server
Samba Server
Buttons Wi-Fi/WPS Button
Power On/Off Button
LED On/Off Button
Reset Button
Power 12 V ⎓ 2 A - SECURITY
WiFi Encryption WEP
WPA
WPA2
WPA/WPA2-Enterprise (802.1x)
Network Security SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway
HomeCare™ AntivirusMalicious Site Checker
Port Intrusion Prevention
Infected Device Isolation
Notification and Log
Guest Network 1× 5 GHz Guest Network
1× 2.4 GHz Guest Network
VPN Server OpenVPN
PPTP - SOFTWARE
Protocols IPv4
IPv6
Service Kits HomeCare™
Learn More>
Parental Controls HomeCare™ Parental ControlsCustom Profiles
Content Filtering
App Block
URL Filtering
Time Limit
Time Schedule (Bedtime)
Log Insight
WAN Types Dynamic IP
Static IP
PPPoE
PPTP
L2TP
Quality of Service QoS by Device
HomeCare™ QoSQoS by Application
Cloud Service Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS
NAT Forwarding Virtual Servers
Port Forwarding
Port Triggering
DMZ
UPnP
IPTV IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
DHCP Address Reservation
DHCP Client List
Server
DDNS TP-Link
NO-IP
DynDNS
Management Tether App
Webpage
Check Web Emulator> - PHYSICAL
Dimensions (W×D×H) 10.2 × 5.3 × 1.5 in
(260.2 x 135.0 x 38.6 mm)
Package Contents Wi-Fi Router Archer AX50
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide - OTHER
System Requirements Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
Cable or DSL Modem (if needed)
Subscription with an internet service provider (for internet access)
Certifications FCC
Environment Operating Temperature: 0℃~40℃ (32℉ ~104℉)
Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing - TEST DATA
WiFi Transmission Power FCC:
<30dBm(2.4GHz & 5.15GHz~5.825GHz)
WiFi Reception Sensitivity 5 GHz:
11a 6Mbps:-97dBm,
11a 54Mbps:-79dBm
11ac VHT20_MCS0:-96dBm,
11ac VHT20_MCS11:-66dBm
11ac VHT40_MCS0:-94dBm,
11ac VHT40_MCS11:-63dBm
11ac VHT80_MCS0:-91dBm,
11ac VHT80_MCS11:-60dBm
11ac VHT160_MCS0:-88dBm,
11ac VHT160_MCS11:-55dBm
11ax HE20_MCS0:-95dBm,
11ax HE20_MCS11:-63dBm
11ax HE40_MCS0:-92dBm,
11ax HE40_MCS11:-60dBm
11ax HE80_MCS0:-89dBm,
11ax HE80_MCS11:-58dBm
11ax HE160_MCS0:-85dBm,
11ax HE160_MCS11:-55dBm
2.4 GHz:
11g 6Mbps:-97dBm,
11a 54Mbps:-79dBm
11n HT20_MCS0:-97dBm,
11n HT20_MCS7:-78dBm
11n HT40_MCS0:-95dBm,
11n HT40_MCS7:-75dBm
11ac VHT20_MCS0:-96dBm,
11ac VHT20_MCS11:-67dBm
11ac VHT40_MCS0:-94dBm,
11ac VHT40_MCS11:-64dBm
11ax HE20_MCS0:-96dBm,
11ax HE20_MCS11:-64dBm
11ax HE40_MCS0:-93dBm,
11ax HE40_MCS11:-61dBm
