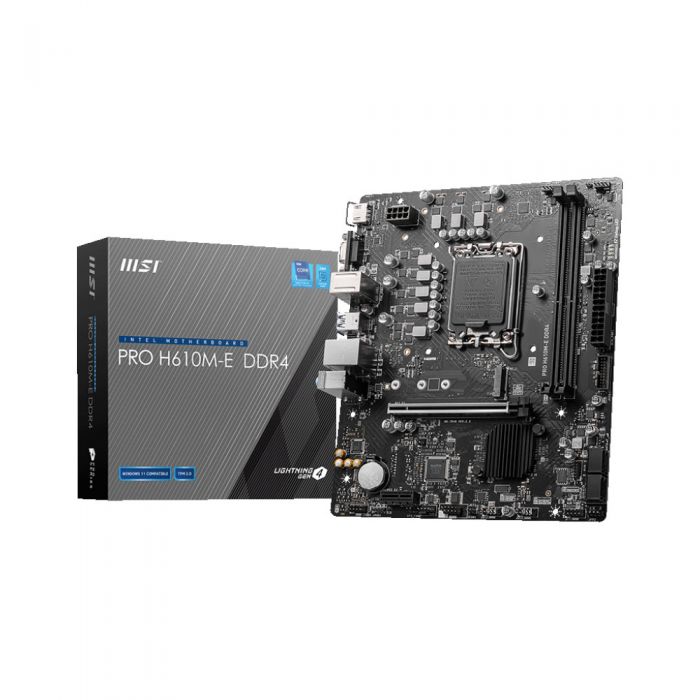

MSI PRO H610M-E DDR4, Socket 1700, Micro ATX, Motherboard

MSI PRO H610M-E DDR4, Socket 1700, Micro ATX, Motherboard - MSI PRO H610M-E DDR4

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

Features:

• Lightning Gen4 Solution
  The latest Gen4 PCI-E solution with up to 64GB/s bandwidth for
  maximum transfer speed.
• Core Boost
  With premium layout and fully digital power design to support
  more cores and provide better performance.
• Memory Boost
  Advanced technology to deliver pure data signals for the best
  performance, stability and compatibility.
• PCI-E Steel Armor
  Protecting VGA cards against bending and EMI.
• EZ Debug LED
  Easiest way to troubleshoot.
• Frozr AI Cooling
  Detect CPU & GPU temperatures and automatically adjust system
  fan duty to a proper value.
• Audio Boost
  Reward your ears with studio grade sound quality for the most
  immersive audio experience.

Specifications:

• Processor
  Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors 1
• Processor socket LGA1700
• Chipset
  Intel® H610 Chipset
• Memory
  2x DDR4 memory slots, support up to 64GB 1
  Supports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
• Expansion Slot
  1x PCIe x16 slot (From CPU)
  Supports up to PCIe 4.0 x16
  1x PCIe x1 slot (From H610 chipset)
  Supports PCIe 3.0 x1
• Onboard Graphics
  1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz 1 / 2
  1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz 1 / 2
  Available only on processors featuring integrated graphics.
  Graphics specifications may vary depending on the CPU installed.
• SATA Ports
  4x SATA 6Gb/s ports (From H610 chipset)
• M.2 SSD Slot
  1x M.2 slot (Key M) (from CPU)
  Supports up to PCIe 3.0 x4
  Supports up to SATA 6Gb/s
  Supports 2242/ 2260/ 2280 storage devices
• Audio
  Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• LAN
  1x Realtek® RTL8111H 1Gbps LAN controller
• Power Connectors
  1x 24-pin ATX main power connector
  1x 8-pin +12V power connector
• Internal USB Connectors
  1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)
  Supports additional 2 USB 3.2 Gen 1 5Gbps ports
  2x USB 2.0 Type-A connectors (From Hub-GL850G)
  Supports additional 4 USB 2.0 ports
• Fan Connectors
  1x 4-pin CPU fan connector
  2x 4-pin system fan connectors
• System Connectors
  1x Front panel audio connector
  2x System panel connectors
  1x Chassis Intrusion connector
  1x TPM module connector
  1x Serial port connector
• Jumpers
  1x Clear CMOS jumper
• LED Features
  1x 4-pin RGB LED connector
  4x EZ Debug LED
• Back panel ports
  HDMI™
  VGA
  Keyboard / Mouse
  USB 3.2 Gen 1 5Gbps Type-A
  LAN port
  Audio connector
  USB 2.0
• Dimensions
  M-ATX Form Factor
  9.3 in. x 7.9 in. (23.6 cm x 20 cm)
