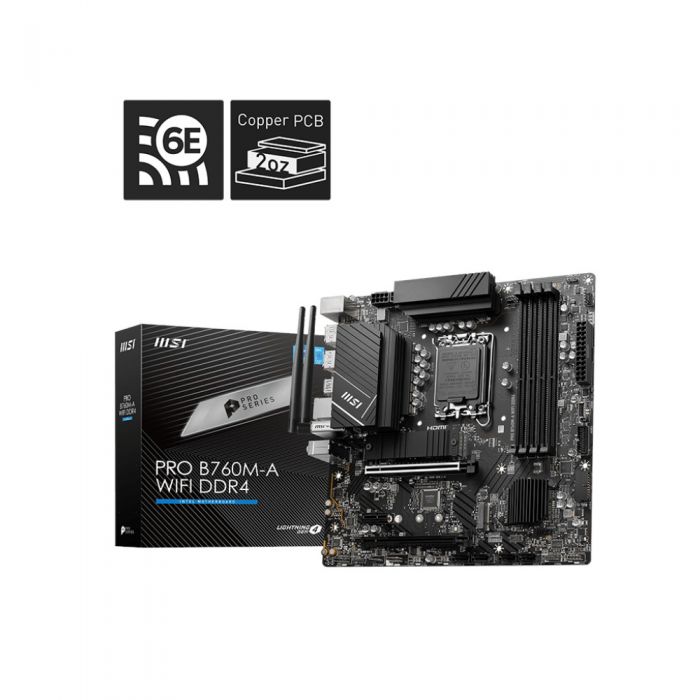

MSI PRO B760M-A WIFI DDR4, Intel B760, LGA1700, DDR4, mATX

£139.00 £154.99
SKU
SK-20686
Availability: In stock
  • MSI PRO B760M-A WIFI DDR4, Intel B760, LGA1700, DDR4, mATX
  • Supports 12th/13th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
  • Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
  • Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
  • Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield
  • Frozr are built for high performance system and non-stop gaming experience
  • High Quality PCB: 6-layer PCB made by 2oz thickened copper
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
  • 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience



More Info

MSI PRO B760M-A WIFI DDR4, Intel B760, LGA1700, DDR4, mATX
PRO B760M-A WIFI DDR4 is designed with tons of flexible tools and convenient Wi-Fi solution with DDR4 memory version.


Features:

  • Extended Heatsink
    Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
  • M.2 Shield Frozr
    Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
  • Heavy Plated VRM Heatsink
    The VRM heatsink covers the upper MOS and helps dissipate the heat.
  • 7W/mK Thermal Pad & Additional Choke Pad
    High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
  • Chipset Heatsink
    The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
    LIGHTNING GEN 4 PCI-E
    Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
  • 12+1+1 POWER DESIGN
    Unleash and sustain the maximum performance with a VRM design built with a total of 12+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, MSI PRO Series motherboards are ready to sustain heavy daily work.
  • DDR4 MEMORY SOLUTION
    With MSI Memory Boost technology and premium layout design, MSI PRO Series motherboards are ready to deliver the world-class memory performance.
  • Wi-Fi 6E
    The latest wireless solution supports 6GHz spectrum, MU-MIMO
    and BSS color technology, delivering speeds up to 2400Mbps.
  • 2.5G Network Solution
    Featuring premium 2.5G LAN to deliver better network
    experience.
  • EZ Debug LED
    Easiest way to troubleshoot.
  • Frozr AI Cooling
    Detect CPU & GPU temperatures and automatically adjust system
    fan duty to a proper value.
  • Memory Boost
    Advanced technology to deliver pure data signals for the best
    performance, stability and compatibility.
  • Core Boost
    With premium layout and fully digital power design to support
    more cores and provide better performance.
  • EXTEND YOUR RGB EXPERIENCE WITH EASE
    Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.
  • HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
    MSI's premium network solution provides incredible data transfer speed for demanding users.
  • REINFORCED, HEAVY SOLDERED CONNECTIONS
    Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.



Specifications:

  • CHIPSET INTEL B760
  • CPU SUPPORT Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
  • MEMORY 4x DDR4, Maximum Memory Capacity 128GB
    Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 5333+ MHz
    • 1DPC 2R Max speed up to 4800+ MHz
    • 2DPC 1R Max speed up to 4400+ MHz
    • 2DPC 2R Max speed up to 4000+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile (XMP)
  • ONBOARD GRAPHICS 2x HDMI™
    Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
    2x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
  • EXPANSION SLOT 2x PCI-E x16 slot
    1x PCI-E x1 slot
    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
  • STORAGE 2x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
    4x SATA 6G
    * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
    RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB 2x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Rear)
    4x USB 3.2 Gen1 Type A (Front)
    1x USB 3.2 Gen1 Type C (Front)
    2x USB 3.2 Gen2 Type A (Rear)
    LAN Realtek® RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH Intel® Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3, FIPS, FISMA
    * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
    ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
  • AUDIO Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
  • INTERNAL I/O 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    2x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Com Port (JCOM)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    4x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen1 Type C ports
    LED FEATURE 4x EZ Debug LED
  • BACK PANEL PORTS
    Keyboard / Mouse
    DisplayPort
    USB 3.2 Gen 1 5Gbps (Type-A)
    2.5G LAN
    Wi-Fi / Bluetooth
    Audio Connectors
    USB 2.0
    HDMI™
    USB 3.2 Gen 2 10Gbps (Type-A)
  • OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
  • PCB DIMENSION (W × L) mATX
    243.84mmx243.84mm
