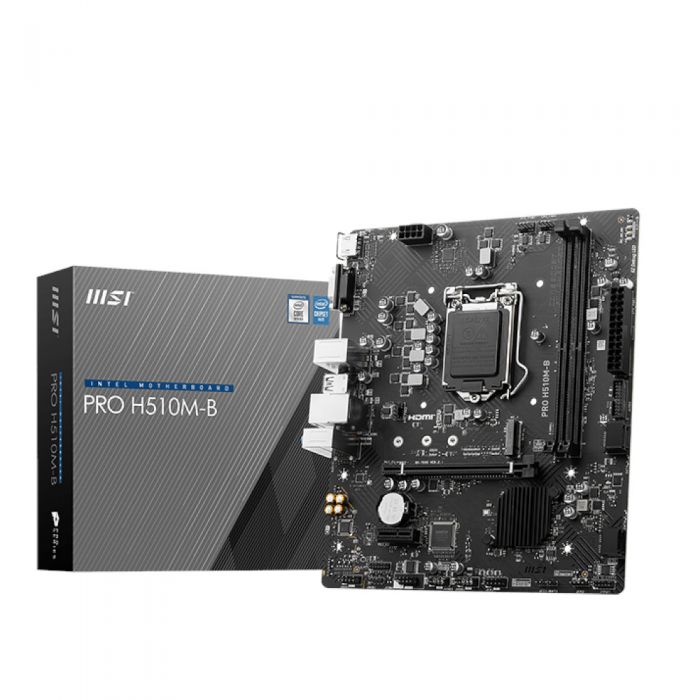

MSI H510M-B, S1200, 10th Gen Only, DDR4, MMTX, M/board

MSI H510M-B, Socket 1200, DDR4, Micro ATX, Motherboard

Features:

• Supports 10th Gen CPU's only. Motherboard doesn't support 11th Gen CPU's. Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket.
• Supports DDR4 Memory, up to 2933MHz (MAX)
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
• EZ Debug LED: Easiest way to troubleshoot.

Specifications:

• Chipset INTEL H470
• CPU SUPPORT Supports 10th Gen Intel Core and Pentium Gold/Celeron processors for LGA 1200 Socket
• Memory
  2x DDR4, Maximum Memory Capacity 64GB
  Memory Support 2933/ 2666/ 2400/ 2133 MHz
  Supports 1R 2133/ 2666/ 2933 MHz for Intel® Core™ i9/ Core™ i7 CPU
  Supports 1R 2133/ 2666 MHz for Intel® Core™ i5/ Core™ i3/ Pentium® Gold and Celeron® CPU
  Supports Dual-Channel mode
  Supports non-ECC, un-buffered memory
  Supports Intel® Extreme Memory Profile (XMP)
• Onboard Graphics
  1x HDMI™
  Support HDMI™ 1.4, maximum resolution of 4K 30Hz*
  1x VGA
  Support VGA, maximum resolution of 2048x1536 50Hz, 1920x1200 60Hz
  *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
• EXPANSION SLOT
  1x PCI-E x16 slot
  1x PCI-E x1 slot
  PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
  PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
• Storage
  1x M.2
  M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
  4x SATA 6G
• USB
  4x USB 2.0 (Rear)
  4x USB 2.0 (Front)
  2x USB 3.2 Gen1 Type A (Rear)
  2x USB 3.2 Gen1 Type A (Front)
• LAN Realtek® 8111H Gigabit LAN
• Audio
  Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
• Internal I/O
  1x Power Connector(ATX_PWR)
  1x Power Connector(CPU_PWR)
  1x CPU Fan
  2x System Fan
  2x Front Panel (JFP)
  1x Chassis Intrusion (JCI)
  1x Front Audio (JAUD)
  1x Com Port (JCOM)
  1x RGB LED connector(JRGB)
  1x TPM pin header(Support TPM 2.0)
  4x USB 2.0 ports
  2x USB 3.2 Gen1 Type A ports
• LED FEATURE 4x EZ Debug LED
• BACK PANEL PORTS
  HDMI™
  VGA
  Keyboard / Mouse
  USB 3.2 Gen 1 5Gbps (Type-A)
  LAN port
  Audio Connectors
  USB 2.0
  USB 2.0
• OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
• PCB Dimension (W × L) mATX 202mmx236mm
