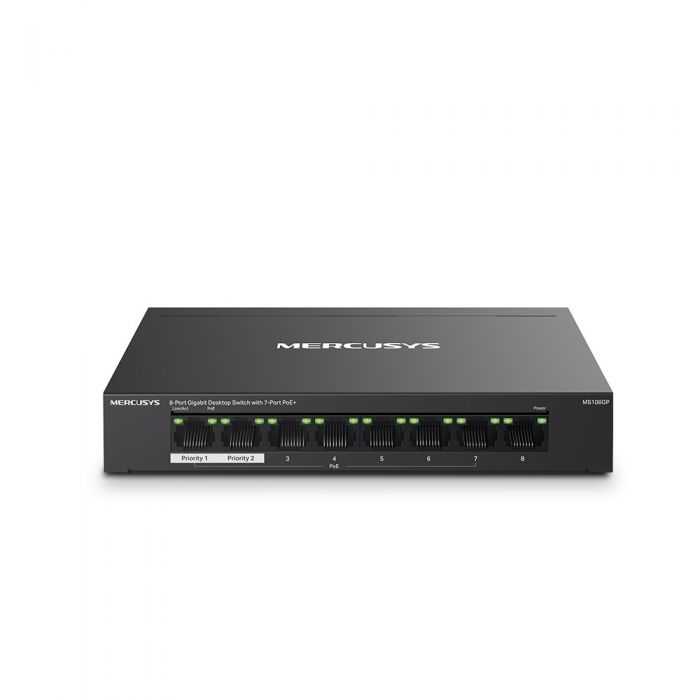

Mercusys 8-Port(7 x PoE+) Gigabit Unmanaged Desktop Switch

Mercusys 8-Port(7 x PoE+) Gigabit Unmanaged Desktop Switch - MS108GP

7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it.

Features:

• No Fuss
  No need for electricians; simplify installation and deployment.
• Cost-Efficiency
  Getting rid of extra cables and power adapters will save money on infrastructure.
• Flexibility
  Deployment in complex situations is made possible by more placement possibilities.
• Power Management
  Improves power usage while intelligently protecting your gadgets from power surges.
• IEEE 802.3af/at
  PoE ports compliant with the 802.3af/at Powered Devices.
• Long-Range up to 250 m with Extend Mode**
  Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
• Traffic Separation
  With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection.
• Port Prioritization
  Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains.
• Plug and Play
  MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort.
• Durable and Silent
  MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life.

Hardware Specifications:

• Dimensions
  171*98*27 mm
• PoE Ports
  RJ45
• Standard: Compliant with 802.3 af/at Powered Devices
  PoE Ports: Port 1- Port 7
  PoE Power Budget: 65 W
• External Power Supply
  External Power Adapter (Output: 53.5V/1.31A)
• Installation
  Desktop
  Wall Mount
• Standards and Protocols
  IEEE 802.3x Flow Control
• Data Rates
  10/100/1000 Mbps at Half Duplex
  20/200/2000 Mbps at Full Duplex
• Jumbo Frame
  9 KB
• Mac Address Table
  8K
• Max Power Consumption
  5.07W（220 V / 50 Hz, no PD connected）
  77.33W（220 V / 50 Hz, with 65W PD connected）
• Max Heat Dissipation
  17.238 BTH/h （no PD connected)
  262.922 BTH/h（with 65W PD connected）

Other Specifications:

• Package Contents
  • 8-Port Gigabit Desktop Switch with 7-Port PoE+(MS108GP)
  • Power Adapter
  • Quick Installation Guide
• Environment
  Operating Temperature: 0℃~40℃ (32℉~104℉)
  Storage Temperature: -40℃~70℃ (-40℉~158℉)
  Operating Humidity: 10%~90% RH non-condensing
  Storage Humidity: 5%~95% RH non-condensing
