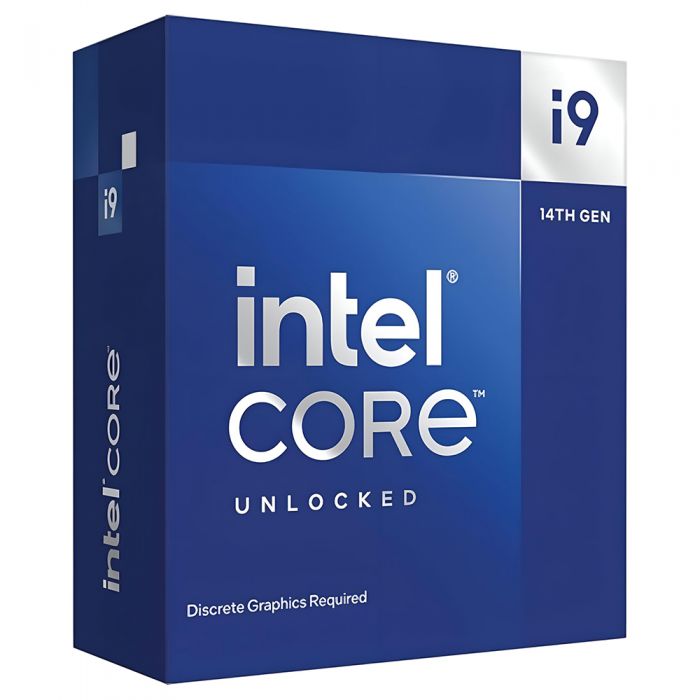

Intel Core i9-14900K, s1700, 3.2GHz (6.0 Turbo), 24-Core, 36MB

Intel Core i9-14900K, s1700, 3.2GHz (6.0 Turbo), 24-Core, 36MB - BX8071514900K

Game without compromise Go beyond performance with the latest 14th Generation Intel Core processors, based on the Raptor-Lake Refresh Architecture with a hybrid-design incorporating a mixture of high performance P-Cores and efficient E-Cores. The i9-14900K comes in with up to 24 cores (8 Performance and 16 Efficient Cores) and up to 32 threads. Capable of reaching maximum clock speeds of 6.0GHz and providing incredible versatility with support for PCIe 5.0 components, DDR4 and DDR5 memory and All-New Wifi 7 connectivity. Be your Best with Intel.

Features:

• 24 Cores:
  8 Performance Cores
  16 Efficient Cores
• 32 Threads:
  16 on Performance Cores
  16 on Efficient Cores
• REVOLUTIONARY PERFORMANCE AND MULTITASKING
  Newly optimised hybrid architecture and industry-leading technology enable you to go beyond gaming and creation. From progressing in-game to advancing in real life, Intel® empowers you to be your best self. 
• 8 Performance Cores
  unleashes the capability to optimise the latest games and gaming software.
• 16 Efficient Cores
  Provides multi-tasking power to work, create and play together.
• Intel Thread Director
  Keeps your gaming free of interruptions by making sure your background tasks never slow you down.
• Realise Your Dream Build
  14th Generation Intel Core desktop processors delivers broad spectrum support and maximum versatility to enable you to personalise and optimise your system to suit your needs using the latest gaming technologies.
• Expanded Memory Options
  Support for both DDR4 and DDR5 memory gives you complete control over your memory configurations.
• Build out Your Setup
  Support for the latest PCIe Gen 5.0 components.
• Competitive Connectivity
  Connect quickly and without interference with support for up to Wi-Fi 7 networks.
  Subject to network availability, operating system support, and router compatibility.
• You set the Max
  Customise your performance to meet your precise needs with the Intel® Extreme Tuning Utility.
  **Unlocked features are present with select chipset and processor combinations.
• Intel® Thread Director
  Intel® Thread Director dynamically assigns tasks so you can do it all without slowing down.
• Optimise Your setup
  Performance hybrid architecture can easily run streaming software in the background while prioritising gameplay.

Specifications:

• CPU Specifications
  Total Cores
  24
  # of Performance-cores
  8
  # of Efficient-cores
  16
  Total Threads
  32
  Max Turbo Frequency
  6 GHz
  Intel® Thermal Velocity Boost Frequency
  6 GHz
  Intel® Turbo Boost Max Technology 3.0 Frequency ‡
  5.8 GHz
  Performance-core Max Turbo Frequency
  5.6 GHz
  Efficient-core Max Turbo Frequency
  4.4 GHz
  Performance-core Base Frequency
  3.2 GHz
  Efficient-core Base Frequency
  2.4 GHz
  Cache
  36 MB Intel® Smart Cache
  Total L2 Cache
  32 MB
  Processor Base Power
  125 W
  Maximum Turbo Power
  253 W
• Memory Specifications
  Max Memory Size (dependent on memory type)
  192 GB
  Memory Types
  Up to DDR5 5600 MT/s
  Up to DDR4 3200 MT/s
  Max # of Memory Channels
  2
  Max Memory Bandwidth
  89.6 GB/s
  ECC Memory Supported ‡
  Yes
• GPU Specifications
  GPU Name‡
  Intel® UHD Graphics 770
  Graphics Base Frequency
  300 MHz
  Graphics Max Dynamic Frequency
  1.65 GHz
  Graphics Output
  eDP 1.4b, DP 1.4a, HDMI 2.1
  Execution Units
  32
  Max Resolution (HDMI)‡
  4096 x 2160 @ 60Hz
  Max Resolution (DP)‡
  7680 x 4320 @ 60Hz
  Max Resolution (eDP - Integrated Flat Panel)‡
  5120 x 3200 @ 120Hz
  DirectX* Support
  12
  OpenGL* Support
  4.5
  OpenCL* Support
  3.0
  Multi-Format Codec Engines
  2
  Intel® Quick Sync Video
  Yes
  Intel® Clear Video HD Technology
  Yes
  # of Displays Supported ‡
  4
  Device ID
  0xA780
• Expansion Options
  Direct Media Interface (DMI) Revision
  4.0
  Max # of DMI Lanes
  8
  Scalability
  1S Only
  PCI Express Revision
  5.0 and 4.0
  PCI Express Configurations ‡
  Up to 1x16+4, 2x8+4
  Max # of PCI Express Lanes
  20
•
  Package Specifications
  Sockets Supported
  FCLGA1700
  Max CPU Configuration
  1
  Thermal Solution Specification
  PCG 2020A
  TJUNCTION
  100°C
  Package Size
  45.0 mm x 37.5 mm
  Max Operating Temperature
  100 °C
• Advanced Technologies
  Intel® Volume Management Device (VMD)
  Yes
  Intel® Gaussian & Neural Accelerator
  3.0
  Intel® Thread Director
  Yes
  Intel® Deep Learning Boost (Intel® DL Boost) on CPU
  Yes
  Intel® Speed Shift Technology
  Yes
  Intel® Adaptive Boost Technology
  Yes
  Intel® Thermal Velocity Boost
  Yes
  Intel® Turbo Boost Max Technology 3.0 ‡
  Yes
  Intel® Turbo Boost Technology ‡
  2.0
  Intel® Hyper-Threading Technology ‡
  Yes
  Intel® 64 ‡
  Yes
  Instruction Set
  64-bit
  Instruction Set Extensions
  Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
  Idle States
  Yes
  Enhanced Intel SpeedStep® Technology
  Yes
  Thermal Monitoring Technologies
  Yes
• Security & Reliability
  Intel vPro® Eligibility ‡
  Intel vPro® Enterprise, Intel vPro® Essentials, Intel vPro® Platform
  Intel® Threat Detection Technology (TDT)
  Yes
  Intel® Active Management Technology (AMT) ‡
  Yes
  Intel® Standard Manageability (ISM) ‡
  Yes
  Intel® Remote Platform Erase (RPE) ‡
  Yes
  Intel® One-Click Recovery ‡
  Yes
  Intel® Hardware Shield Eligibility ‡
  Yes
  Intel® Control-Flow Enforcement Technology
  Yes
  Intel® Total Memory Encryption - Multi Key
  Yes
  Intel® AES New Instructions
  Yes
  Secure Key
  Yes
  Intel® OS Guard
  Yes
  Intel® Trusted Execution Technology ‡
  Yes
  Execute Disable Bit ‡
  Yes
  Intel® Boot Guard
  Yes
  Mode-based Execute Control (MBEC)
  Yes
  Intel® Stable IT Platform Program (SIPP)
  Yes
  Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡
  Yes
  Intel® Virtualization Technology (VT-x) ‡
  Yes
  Intel® Virtualization Technology for Directed I/O (VT-d) ‡
  Yes
  Intel® VT-x with Extended Page Tables (EPT) ‡
  Yes
