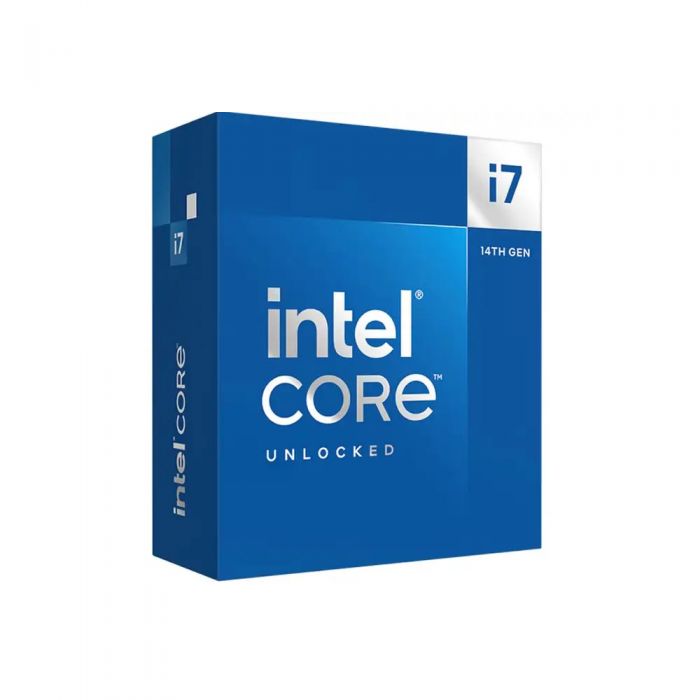

Intel Core i7-14700F, s1700, Up to 5.4GHz, 20 Core/28 Thread

CPU Specifications

• Total Cores: 20
• # of Performance-cores: 8
• # of Efficient-cores: 12
• Total Threads: 28
• Max Turbo Frequency: 5.4 GHz
• Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.4 GHz
• Performance-core Max Turbo Frequency: 5.3 GHz
• Efficient-core Max Turbo Frequency: 4.2 GHz
• Performance-core Base Frequency: 2.1 GHz
• Efficient-core Base Frequency: 1.5 GHz
• Cache: 33 MB Intel® Smart Cache
• Total L2 Cache: 28 MB
• Processor Base Power: 65 W
• Maximum Turbo Power: 219 W

Memory Specifications

• Max Memory Size (dependent on memory type) 192 GB
• Memory Types: Up to DDR5 5600 MT/s, Up to DDR4 3200 MT/s
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 89.6 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision 4.0
• Max # of DMI Lanes: 8
• Scalability: 1S Only
• PCI Express Revision: 5.0 and 4.0
• PCI Express Configurations ‡: Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes: 20

Package Specifications

• Sockets Supported: FCLGA1700
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2020C
• TJUNCTION: 100°C
• Package Size: 45.0 mm x 37.5 mm

Advanced Technologies

• Intel® Gaussian & Neural Accelerator: 3.0
• Intel® Thread Director: Yes
• Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
• Intel® Speed Shift Technology: Yes
• Intel® Turbo Boost Max Technology 3.0 ‡: Yes
• Intel® Turbo Boost Technology ‡: 2.0
• Intel® Hyper-Threading Technology ‡: Yes
• Intel® 64 ‡: Yes
• Instruction Set: 64-bit
• Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
• Idle States: Yes
• Enhanced Intel SpeedStep® Technology: Yes
• Thermal Monitoring Technologies: Yes
• Intel® Volume Management Device (VMD): Yes

Security & Reliability

• Intel® Standard Manageability (ISM) ‡: Yes
• Intel® Control-Flow Enforcement Technology: Yes
• Intel® AES New Instructions: Yes
• Secure Key: Yes
• Intel® OS Guard: Yes
• Execute Disable Bit ‡: Yes
• Intel® Boot Guard: Yes
• Mode-based Execute Control (MBEC): Yes
• Intel® Virtualization Technology (VT-x) ‡: Yes
• Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
• Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
