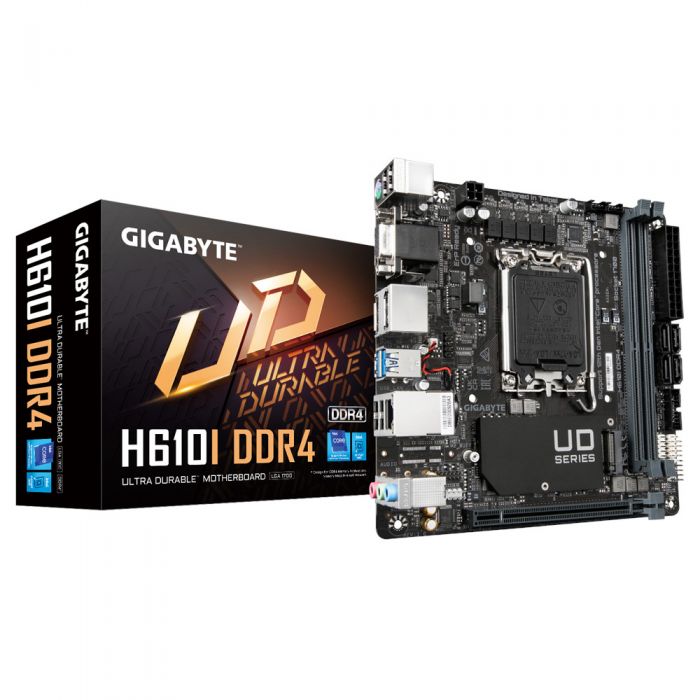

Gigabyte H610I, s1700, Mini-ITX, 2xDDR4, 1xM.2/4xSATA, D-Sub/2xD.Port/HDMI

Gigabyte H610I, s1700, Mini-ITX, 2xDDR4, 1xM.2/4xSATA, D-Sub/2xD.Port/HDMI - Gigabyte H610I

Intel® H610 Motherboard with 4+1+1 Hybrid Phases Digital VRM Design, PCIe 4.0* Design, Gen3 x4 M.2 , Intel® GbE with cFosSpeed, Anti-Sulfur Resistor, Smart Fan 6

Features:

• Cleaner and more efficient power delivery to the CPU with better thermal performance ensure stability under high CPU frequencies and heavy loading.
  4+1+1 Phases DrMOS*. * DrMOS adopted only on Vcore / VGT.
  Solid capacitors to improve transient response and minimize oscillation.
  Solid Pin CPU Power Connector.
• PCIe 4.0 Ready PCB, Low signal Loss PCB.
• 1 x PCIe 4.0 Slot, Reinforced PCIe 4.0 x 16.
• Intel® GbE LAN with cFosSpeed Internet Accelerator Networking
  Intel® GbE LAN features cFosSpeed, a network traffic management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
• Solid Pin Power Connectors
  H610 motherboards feature solid plated ATX 24pin & ATX 12V 4pin power connectors to offer a stable power supply during CPU overloading.
• Solid Pin Power connector advantages
  Larger contact area for electricity
  More metal quantity to sustain higher power and generated heat
  Ultra durable and longer lifespan
• BIOS
  The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
  * Photos are for reference only. Product features may vary by model.

Specifications:

• CPU
  LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
  L3 cache varies with CPU
  * Please refer to "CPU Support List" for more information.
• Chipset
  Intel® H610 Express Chipset
• Memory
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  * Support for HDMI 2.1 version and HDCP 2.3.
  ** Support native HDMI 2.1 TMDS compatible ports
  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version and HDCP 2.3.
  1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version.
  (Graphics specifications may vary depending on CPU support.)
  Support for up to 3 displays at the same time
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
  Intel® GbE LAN chip (1 Gbps/100 Mbps)
• Expansion Slots
  1 x PCI Express x16 slot, running at x16
  (The PCIEX16 slot conforms to PCI Express 4.0 standard.)
• Storage Interface
  Chipset:
  1 x M.2 connector (Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
• USB
  Chipset:
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  4 x USB 2.0/1.1 ports on the back panel
  Chipset+USB 2.0 Hub:
  4 x USB 2.0/1.1 ports available through the internal USB headers
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 4-pin ATX 12V power connector
  1 x CPU fan header
  2 x system fan headers
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  2 x USB 2.0/1.1 headers
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  2 x serial port headers
  1 x Clear CMOS jumper
  1 x chassis intrusion header
• Back Panel Connectors
  1 x PS/2 keyboard/mouse port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x D-Sub port
  2 x DisplayPorts
  1 x HDMI 2.0 port
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed control
  * Whether the fan speed control function is supported will depend on the fan you install.
• BIOS
  1 x 256 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  EasyTune
  Ambient LED
  Smart Backup
  System Information Viewer
  Support for Q-Flash
  Support for Xpress Install
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Mini-ITX Form Factor; 17.0cm x 17.0cm
