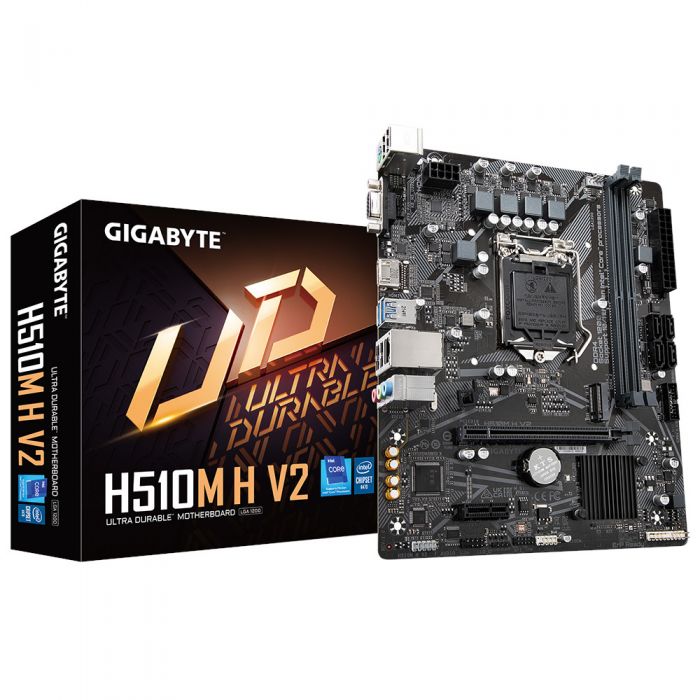

Gigabyte H510M H V2, Socket 1200, DDR4, Micro ATX, Motherboard

Features:

• GbE LAN with Bandwidth Management
  GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
• NVMe PCIe Gen3 x4 2280 M.2 Connector
  GIGABYTE Motherboards are focused on delivering M.2 technology to enthusiasts who want to maximize their system’s potential.
• Smart Fan 5
  With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.
  ■ 4 Temperature Sensors
  ■ 2 Fan Pin Headers
  ■ All Fan Pin Headers Upgraded to Hybrid Fan Headers
  ■ Interoperable Fans and Sensors
  ■ Intuitive UI for Fan Control
• Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.
• High-End Audio Capacitors
  GIGABYTE motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
• Audio Noise Guard
  GIGABYTE motherboards feature an audio noise guard that essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.
• START SULFURIZATION PROTECTION
  Sulfur compounds in the air can penetrate tiny onboard resistors creating chemical change and causing these resistors to open or short. If either of these occurs the motherboard will fail to function. By equipping resistors with an Anti-Sulfur Design GIGABYTE gives Ultra Durable Motherboards a whole new meaning.
• The Industry's Leading Surge Protection
  GIGABYTE motherboards also feature special anti-surge IC that protect your motherboard, helping to ensure that your PC is equipped to deal with any potentially irregular electrical spikes.
• Humidity Protection Glass Fabric PCB
  There is nothing more harmful to the longevity of your PC than moisture, and most parts of the world experience moisture in the air as humidity at some point during the year. GIGABYTE motherboards have been designed to make sure that humidity is never an issue, incorporating a new Glass Fabric PCB technology that repels moisture caused by humid and damp conditions. Glass Fabric PCB technology uses a new PCB material which reduces the amount of space between the fiber weave, making it much more difficult for moisture to penetrate compared to traditional motherboard PCBs. This offers much better protection from short circuit and system malfunction caused by humid and damp conditions.
• High Temperature Protection Lower RDS(on) MOSFETs Design
  GIGABYTE motherboards use Low RDS(on) MOSFETs which reduce energy wastage through unnecessary residual heat dissipation. This all amounts to tangible energy savings which are beneficial for both end-users and the environment without impacting system performance.
• Refreshed BIOS
  The BIOS is essential for users during initial setup to allow for the most optimal settings. With a new GUI and easier to use functionalities, GIGABYTE has been able to reinvent the BIOS to give users a better experience while setting up their new system.
• APP CENTER
  GIGABYTE APP CENTER is an useful portal of all GIGABYTE MB utilities and drivers, you can choose any utility you want to install from APP CENTER and keep you updated with latest utilities and drivers version.
• EasyTune™
  GIGABYTE's EasyTune™ is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.
• @BIOS
  The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.
• System Information Viewer
  GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system's behavior; these are the possibilities of the System Information Viewer.

Specifications:

• CPU
  LGA1200 package:
  11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
  10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
  L3 cache varies with CPU
• Chipset
  Intel® H470 Express Chipset
• Memory
  11th Generation Intel® Core™ i9/i7/i5 processors:
  Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  10th Generation Intel® Core™ i9/i7 processors:
  Support for DDR4 2933/2666/2400/2133 MHz memory modules
  10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
  Support for DDR4 2666/2400/2133 MHz memory modules
  2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  Dual channel memory architecture
  Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  Support for Extreme Memory Profile (XMP) memory modules
  (Please refer "Memory Support List" for more information.)
• Onboard Graphics
  Integrated Graphics Processor-Intel® HD Graphics support:
  1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.3.
  1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  * The D-Sub port is only available with the 10th Generation processors.
  (Graphics specifications may vary depending on CPU support.)
• Audio
  Realtek® Audio CODEC
  High Definition Audio
  2/4/5.1/7.1-channel
  * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
  Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
• Expansion Slots
  CPU:
  1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
  Chipset:
  1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
• Storage Interface
  Chipset:
  1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
  4 x SATA 6Gb/s connectors
  RAID 0 and RAID 1 support for NVMe SSD storage devices
  * Supported only with an additional PCIe to M.2 NVMe SSD adapter card and Intel® NVMe SSD.
  RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
• USB
  Chipset:
  4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Internal I/O Connectors
  1 x 24-pin ATX main power connector
  1 x 8-pin ATX 12V power connector
  1 x CPU fan header
  1 x system fan header
  1 x RGB LED strip header
  1 x M.2 Socket 3 connector
  4 x SATA 6Gb/s connectors
  1 x front panel header
  1 x front panel audio header
  1 x USB 3.2 Gen 1 header
  1 x USB 2.0/1.1 header
  1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  1 x serial port header
  1 x Clear CMOS jumper
• Back Panel Connectors
  1 x PS/2 keyboard/mouse port
  1 x D-Sub port
  1 x HDMI port
  2 x USB 3.2 Gen 1 ports
  4 x USB 2.0/1.1 ports
  1 x RJ-45 port
  3 x audio jacks
• I/O Controller
  iTE® I/O Controller Chip
• H/W Monitoring
  Voltage detection
  Temperature detection
  Fan speed detection
  Fan fail warning
  Fan speed contro
  * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1 x 128 Mbit flash
  Use of licensed AMI UEFI BIOS
  PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features
  Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  Ambient LED
  EasyTune
  Smart Backup
  System Information Viewer
  Support for Q-Flash
  Support for Xpress Install
• Bundled Software
  Norton® Internet Security (OEM version)
  LAN bandwidth management software
• Operating System
  Support for Windows 11 64-bit
  Support for Windows 10 64-bit
• Form Factor
  Micro ATX Form Factor; 22.6cm x 18.5cm
