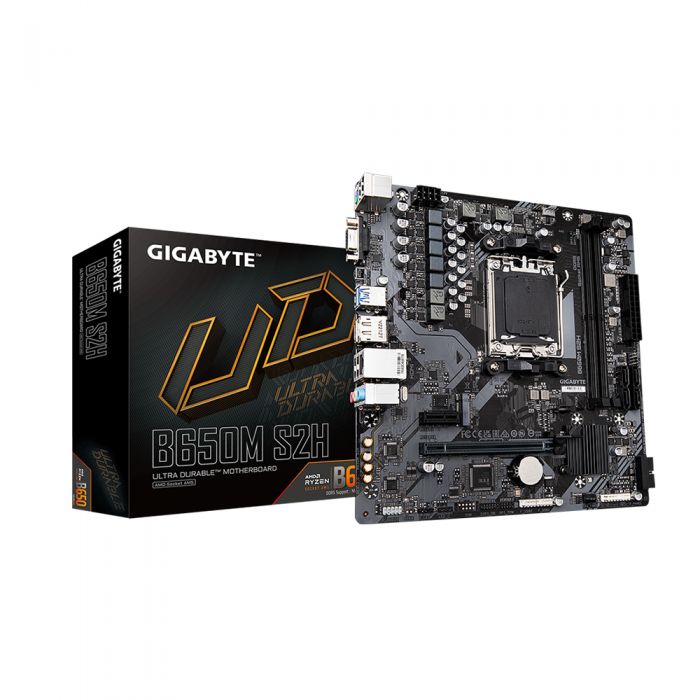

main product photo

Gigabyte GA-B650M S2H, mATX, AM5, 2xDDR5, PCIe 4.0, M.2, GbE Lan

£93.99 £119.00
SKU
SK-20925
Availability: Out of stock
  • GA-B650M S2H
  • AMD Socket AM5: Supports AMD Ryzen 7000 Series & AMD Ryzen 8000 Series Processors
  • Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5：2*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Fast Networks：GbE LAN
  • Extended Connectivity：DP, HDMI, D-Sub
  • 4 x SATA 6Gb/s connectors (RAID 0/1/10)
  • 1 x PCIe 4.0 x4 M.2 connector (RAID 0/1/10)
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
  • Form Factor: Micro ATX Form Factor
More Info
Add to Compare
  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen 7000 / Ryzen 8000 Series Processors
  • Chipset
    AMD B650
  • Memory
    Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
    2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Onboard Graphics
    Integrated Graphics Processor:
    - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
    * Support for DisplayPort 1.4 version.
    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.
    (Graphics specifications may vary depending on CPU support.)
    Support for up to 3 displays at the same time
  • Audio
    Realtek Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel
    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  • Chipset:
    - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1(PCIEX1)
    Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580 SSDs:
    - AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    - 2 x USB 3.2 Gen 1 ports on the back panel
    - 1 x USB 2.0/1.1 port on the back panel
    Chipset:
    - 2 x USB 3.2 Gen 1 ports available through the internal USB header
    - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    2 x system fan headers
    1 x addressable LED strip header
    1 x RGB LED strip header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
    1 x Clear CMOS jumper
  • Back Panel Connectors
    4 x USB 2.0/1.1 ports
    1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x Q-Flash Plus button
    2 x USB 3.2 Gen 1 ports
    1 x DisplayPort
    1 x HDMI port
    1 x RJ-45 port
    3 x audio jacks
  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    Micro ATX Form Factor; 23.0cm x 22.5cm
