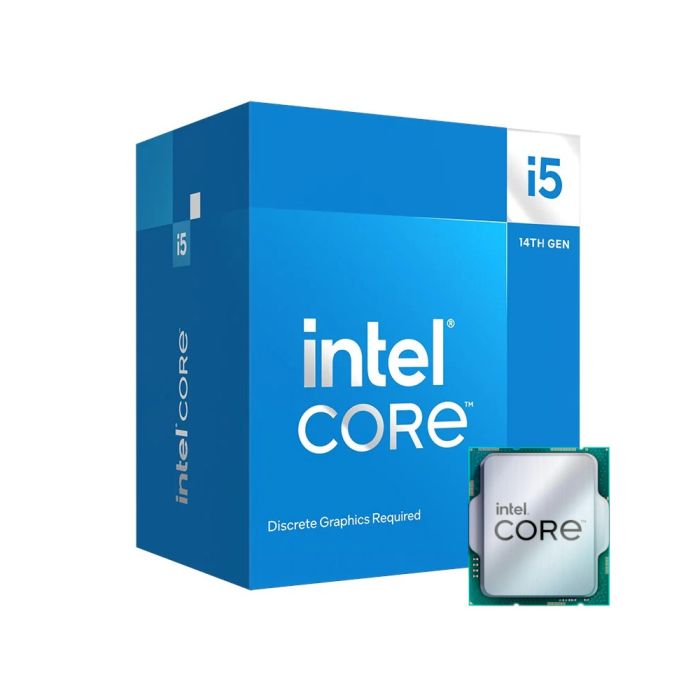

Intel Core i5-14400F CPU, s1700, Up to 4.7GHz, 10-Core/16-Thread

Intel Core i5-14400F CPU, s1700, Up to 4.7GHz, 10-Core/16-Thread - BX8071514400F

CPU Specifications

• Total Cores
  10
• # of Performance-cores
  6
• # of Efficient-cores
  4
• Total Threads
  16
• Max Turbo Frequency
  4.7 GHz
• Performance-core Max Turbo Frequency
  4.7 GHz
• Efficient-core Max Turbo Frequency
  3.5 GHz
• Performance-core Base Frequency
  2.5 GHz
• Efficient-core Base Frequency
  1.8 GHz
• Cache
  20 MB Intel Smart Cache
• Total L2 Cache
  9.5 MB
• Processor Base Power
  65 W
• Maximum Turbo Power
  148 W

Memory Specifications

• Max Memory Size (dependent on memory type)
  192 GB
• Memory Types
  Up to DDR5 4800 MT/s
  Up to DDR4 3200 MT/s
• Max # of Memory Channels
  2
• Max Memory Bandwidth
  76.8 GB/s

Expansion Options

• Direct Media Interface (DMI) Revision
  4.0
• Max # of DMI Lanes
  8
• Scalability
  1S Only
• PCI Express Revision
  5.0 and 4.0
• PCI Express Configurations
  Up to 1x16+4, 2x8+4
• Max # of PCI Express Lanes
  20
•

Package Specifications

• Sockets Supported
  FCLGA1700
• Max CPU Configuration
  1
• Thermal Solution Specification
  PCG 2020C
• TJUNCTION
  100C
• Package Size
  45.0 mm x 37.5 mm
• Max Operating Temperature
  100 C

Advanced Technologies

• Intel Gaussian & Neural Accelerator
  3.0
• Intel Thread Director
  Yes
• Intel Deep Learning Boost (Intel DL Boost) on CPU
  Yes
• Intel Speed Shift Technology
  Yes
• Intel Turbo Boost Technology
  2.0
• Intel Hyper-Threading Technology
  Yes
• Intel 64
  Yes
• Instruction Set
  64-bit
• Instruction Set Extensions
  Intel SSE4.1, Intel SSE4.2, Intel AVX2
• Idle States
  Yes
• Enhanced Intel SpeedStep Technology
  Yes
• Thermal Monitoring Technologies
  Yes
• Intel Volume Management Device (VMD)
  Yes

Security & Reliability

• Intel Standard Manageability (ISM)
  Yes
• Intel Control-Flow Enforcement Technology
  Yes
• Intel AES New Instructions
  Yes
• Secure Key
  Yes
• Intel OS Guard
  Yes
• Execute Disable Bit
  Yes
• Intel Boot Guard
  Yes
• Mode-based Execute Control (MBEC)
  Yes
• Intel Virtualization Technology (VT-x)
  Yes
• Intel Virtualization Technology for Directed I/O (VT-d)
  Yes
• Intel VT-x with Extended Page Tables (EPT)
  Yes
