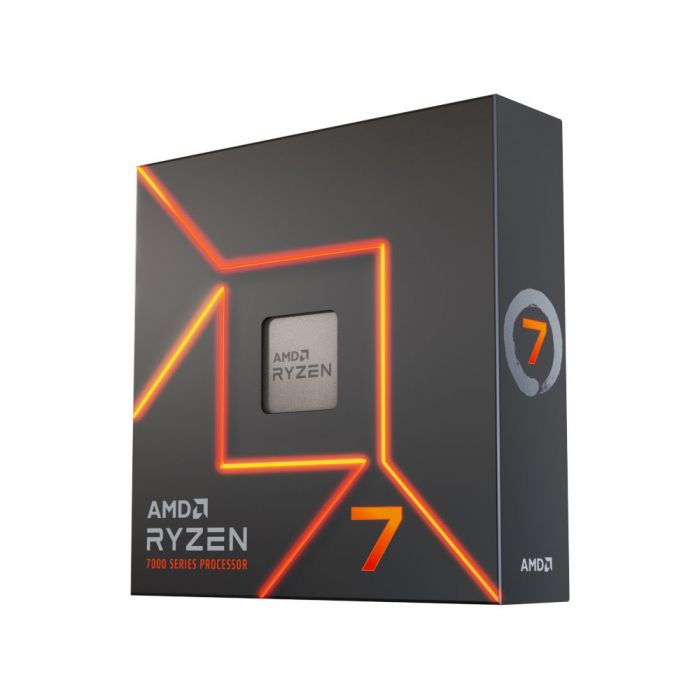

main product photo

AMD Ryzen 7 7700X, AM5, 4.5GHz/5.4 Turbo, 8-Core, 105W/142W Turbo

£279.99 £349.00
SKU
SK-20707
Availability: In stock
  • AMD Ryzen 7 7700X
  • AM5
  • 4.5GHz/5.4 Turbo
  • 8-Core
  • 105W/142W Turbo
  • Cooler not Included
  • Retail
  • 100-000000591
More Info
Add to Compare
  • Platform: Desktop
  • Product Family: AMD Ryzen Processors
  • Product Line: AMD Ryzen 7 Processors
  • Architecture: "Zen 4"
  • # of CPU Cores: 8
  • Multithreading (SMT): Yes
  • # of Threads: 16
  • Max. Boost Clock: Up to 5.4GHz
  • Base Clock: 4.5GHz
  • L1 Cache: 512KB
  • L2 Cache: 8MB
  • L3 Cache: 32MB
  • Default TDP:105W
  • PPT: 142W
  • Processor Technology for CPU Cores: TSMC 5nm FinFET
  • Processor Technology for I/O Die: TSMC 6nm FinFET
  • CPU Compute Die (CCD) Size: 71mm²
  • I/O Die (IOD) Size: 122mm²
  • Package Die Count: 2
  • Unlocked for Overclocking: Yes
  • AMD EXPO Memory Overclocking Technology: Yes
  • Precision Boost Overdrive: Yes
  • Curve Optimizer Voltage Offsets: Yes
  • AMD Ryzen™ Master Support: Yes
  • CPU Socket: AM5
  • Supporting Chipsets: A620, X670E, X670, B650E & B650
  • CPU Boost Technology: Precision Boost 2
  • Instruction Set: x86-64
  • Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64
  • Thermal Solution (PIB): Not included
  • Recommended Cooler: Premium air cooler recommended for optimal performance
  • Max. Operating Temperature (Tjmax):95°C
  • *OS Support: Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition, RHEL x86 64-Bit & Ubuntu x86 64-Bit *Operating System (OS) support will vary by manufacturer.
  • USB Type-C Support: Yes
  • Native USB 3.2 Gen 2 (10Gbps) Ports: 4
  • Native USB 3.2 Gen 1 (5Gbps) Ports: 0
  • Native USB 2.0 (480Mbps) Ports: 1
  • Native SATA Ports: 0
  • PCI Express Version: PCIe 5.0
  • Native PCIe Lanes (Total/Usable): 28 / 24
  • NVMe Support: Boot, RAID0, RAID1, RAID10
  • System Memory Type: DDR5
  • Memory Channels: 2
  • Max. Memory: 128GB
  • System Memory Subtype: UDIMM
  • Max Memory Speed: 2x1R DDR5-5200, 2x2R DDR5-5200, 4x1R DDR5-3600 & 4x2R DDR5-3600
  • ECC Support: Yes (Requires mobo support)
  • Integrated Graphics: Yes
  • Graphics Model: AMD Radeon Graphics
  • Graphics Core Count: 2
  • Graphics Frequency: 2200 MHz
  • USB Type-C® DisplayPort™ Alternate Mode: Yes
