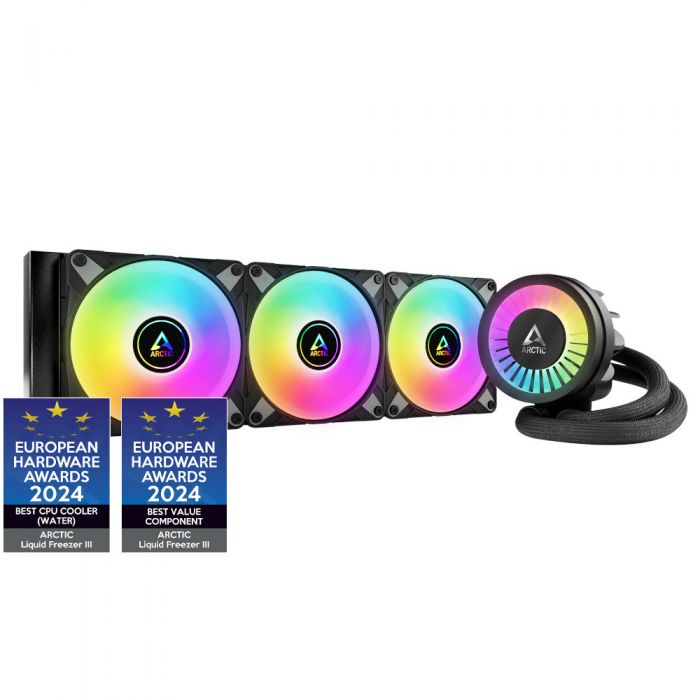

Arctic Liquid Freezer III A-RGB 360mm Liquid CPU Cooler, Black

Arctic Liquid Freezer III A-RGB 360mm Liquid CPU Cooler, Black - ACFRE00144A

Features:

• Ready Out-of-the-Box - Easy Installation
  The Liquid Freezer III is ready for immediate use thanks to its pre-installed radiator fans in push configuration. The fan cables are integrated into the jacket of the hoses so that only one cable needs to be connected to the motherboard. With the MX-6 thermal compound included in delivery, you have everything you need for quick and easy installation.
• Liquid Freezer III 360 A-RGB – Tested and Confirmed by Intel
  Intel has tested and confirmed the Liquid Freezer III on the i9-13900K/KF, i9-14900K/KF and i9-13900KS in the Enthusiast and Desktop category. In these tests, Intel considered both the mounting with contact frame and the cooler's performance.
• Future-Proof Compatibility
  The Liquid Freezer III is multi-compatible with Intel and AMD sockets. Intel will release the new Arrow Lake processors on the LGA1851 socket in the future. We guarantee full compatibility. All Liquid Freezer III can be used with the new LGA1851 socket from Intel without limitation.
• Outstanding Performance
  In independent tests, the Liquid Freezer III clearly stands out from the competition in all price categories, particularly due to its outstanding performance. In noise normalised tests, the Liquid Freezer III shows its true strength, outperforming many competitors with its quiet yet powerful operation.
• Contact Frame for Intel LGA1700 and LGA1851
  Intel's Independent Loading Mechanism (ILM) deforms the CPU by pressing it into the socket at two points with over 40 kg. This causes pressure in the PCB, the die and the solder layer between the die and IHS (Integrated Heat Spreader). With high thermal load, this can lead to long-term problems. The mounting frame from ARCTIC does not deform the CPU, reduces the mechanical load on the CPU massively, is quick and easy to install and allows the cooler to be screwed onto the CPU's backplate. As a result, mechanical stress on the mainboard and CPU is minimised, cooling performance remains consistent and installation is quick and uncomplicated.
• Silent and Powerful VRM Fan
  The voltage converters of motherboards often work at their maximum temperature in combination with power-hungry CPUs. To compensate the lack of airflow from a tower cooler, the Liquid Freezer III works with a revised VRM fan. The 60 mm PWM-controlled fan enables almost silent cooling of the socket area when VRM cooling is insufficient, in cases with poor airflow or especially in overclocking scenarios. This enables a continuously higher load and a longer service life for the voltage converters.
• Optimised, In-House Developed Water Pump
  The Liquid Freezer III is equipped with a specially developed PWM-controlled water pump, which has been further optimised in terms of both performance and noise. Thanks to the improved coldplate with an extended fin surface and optimised water pipes, the Liquid Freezer III increases its performance while maintaining quiet operation.
• Complete Control or Simple Control
  Two connection cables - two control options:
  Separate regulation: By using the splitter cable with three separate connections, the pump, VRM fan and radiator fan can be controlled independently of each other. This allows, for example, the speed of the VRM fan to be controlled independently of the CPU and to be adjusted analogue to the temperature of the voltage converters via PWM.
  All-in-One: Like the Liquid Freezer II, this allows the entire unit to be controlled via a single connection, whereby the speed of the radiator fans is output. The pump, VRM and radiator fans can therefore be easily controlled via a single PWM setting.
• Native AMD Offset Mounting
  For several generations, AMD has been using a multi-die chiplet design for its Ryzen desktop processors. Unlike Intel CPUs, the hotspot on these processors is not located centrally under the IHS (Integrated Heat Spreader), but is slightly offset. The AMD mounting solution therefore has a 5 mm offset in order to achieve optimum heat dissipation.
• Improved Radiator Design
  The cooling surface of the 38 mm thick radiator has been extended by 23 % by increasing the fin stack. This not only enables improved heat dissipation, but also a larger liquid volume. Consequently, the heat build-up in the water cooling system is slowed down and power and temperature peaks can be effectively managed over a longer period of time.
• Limited Compatibility with Few Motherboards
  Some motherboards are incompatible with the Liquid Freezer III due to oversized SSD coolers in the M.2_1 slot. We provide a suitable M.2 cooler free of charge for affected motherboards.
• Addressable LEDs for all Requirements
  ARCTIC uses standardised 3-pin cables instead of proprietary connectors. This not only ensures compatibility with most lighting systems for motherboards, cases, controllers and accessories, but also enables software-based control with the most common control programmes. The daisy-chain function also ensures that each LED can display an individual colour at any time, offering countless combination options for every preference.
• Wide Range of Variants
  The Liquid Freezer III offers outstanding cooling performance in four different sizes and three variants. While the Black version is completely black, the A-RGB versions are available in black or white and have digitally addressable lighting for the pump head and radiator fans. With radiator sizes of 240, 360, 280 and 420, the Liquid Freezer III offers the ideal combination of performance, technology and design for everyone!
• Quality You Can Rely On
  To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.

Specifications:

Compatability

• Intel:
  1700
• AMD:
  AM5, AM4
• PI | NNPI:
  338 | 309
• TIM:
  MX-6 (0.8 g)
• Warranty:
  6 Years
• Operating Ambient Temperature:
  0—40 °C
• Weight:
  1870 g
• LED Connector:
  3-Pin A-RGB Connector
  All-In-One Connector:
  4-Pin PWM Connector
• Splitt Connector:
  3x 4-Pin PWM Connector

Pump

• Pump:
  800—2800 rpm (PWM controlled)
• Current | Voltage:
  0.35 A | 12 V DC
• Cold Plate:
  Copper, Micro Skived Fins
• Tube Length:
  450 mm
• Tube Diameter:
  Outer: 12.4 mm
  Inner: 6.0 mm

Radiator

• Material:
  Aluminium
• Dimensions:
  398 (L) x 120 (W) x 38 (H) mm

VRM Module

• VRM Fan:
  400—2500 rpm (PWM controlled)
• Current | Voltage:
  0.05 A | 12 V DC
• LEDs:
  12x A-RGB LEDs
• Current | Voltage:
  0.40 A | 5 V DC

Radiator Fans

• Fan:
  3x P12 PWM PST A-RGB
• Speed:
  200—2000 rpm
• Air Flow:
  48.82 cfm | 82.91 m3/h
• Static Pressure:
  1.85 mmH2O
• Bearing:
  Fluid Dynamic Bearing
• Current | Voltage:
  0.11 A | 12 V DC
• Cable Lenght:
  40 mm
• Connector:
  4-Pin PWM Connector

RGB

• LEDs:
  12x A-RGB LEDs
• Current | Voltage:
  0.40 V | 5 V DC
• Cable Length:
  40 mm + 80 mm Splitter Cable
• Connector:
  3-Pin A-RGB Connector + 3-Pin Plug
