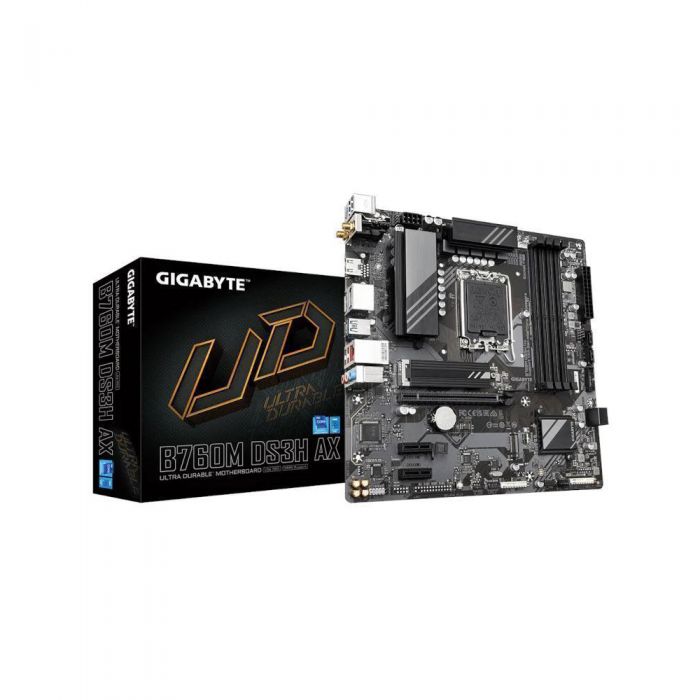

main product photo

Gigabyte B760M-DS3H AX DDR5, LGA1700, USB-C, mATX, Motherboard

£131.99 £139.00
SKU
SK-21379
Availability: Out of stock
  • B760M DS3H AX
  • Micro ATX
  • LGA1700
  • 4 x DDR5
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x1
  • Intel LGA 1700 Socket: Ready for 14th, 13th and 12th Gen Intel Core processors
  • Unparalleled Performance: Twin 6+2+1 Phases Digital VRM Solution
  • Next Generation Storage: 2 x PCIe 4.0 x4 M.2 Connectors
  • M.2 Thermal Guard: To Ensure M.2 SSD Performance
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
  • Extended Connectivity: Rear USB-C 10Gb/s, DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • DIY Features: EZ-Latch PCIe 4.0x16 Slot with Quick Release Design, Q-Flash Plus
More Info
Add to Compare
  • CPU Support: 14th Gen Intel Core processors, 13th Gen Intel Core processors & 12th Gen Intel Core processors
  • Socket Intel LGA 1700
  • Chipset Intel B760
  • Memory Support 4 x DDR5 memory slots supporting up 192GB
  • Dual Channel Technology
  • Supports up to 4800Mhz non-ECC, un-buffered memory
  • Supports memory overclocking up to 7600MHz+
  • NOTE: Actual Memory data rate varies on CPU
  • Expansion Slots 1 x PCIe 4.0 x16 (x16 Speed)
  • 2 x PCIe 3.0 x1
  • Onboard Graphics 1 x HDMI
  • 2 x DisplayPort
  • NOTE: Display support varies on CPU
  • Storage 4 x SATA 6Gb/s
  • 2 x M.2 Key M, 2280, 22110, (PCIe 4.0 x4 Mode)
  • RAID 0/1/5/10 (Only for SATA storage devices)
  • USB Rear I/O 1 x USB 3.2 Gen 2 10Gbps Type-C
  • 3 x USB 3.2 Gen 1 Type-A
  • 2 x USB 2.0 Type-A
  • USB Internal Connectors 2 x USB 3.2 Gen 1 Type-A (2 per header)
  • 4 x USB 2.0 Type-A (2 per header)
  • Thunderbolt None
  • RGB LED Connectors 1 x addressable LED strip headers
  • 1 x RGB LED strip headers
  • Audio Realtek Audio Codec
  • 8-Channel (7.1) HD Audio
  • Support for S/PDIF Out
  • LAN 1 x Realtek 2.5GB LAN
  • WIRELESS Intel Wi-Fi 6E
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
  • Supports Bluetooth 5.3
  • Back Panel Connectors 2 x USB 2.0/1.1 ports
  • 1 x PS/2 keyboard/mouse port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x HDMI port
  • 2 x DisplayPorts
  • 3 x USB 3.2 Gen 1 ports
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 1 x RJ-45 port
  • 3 x audio jacks
  • Internal Connectors 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 3 x system fan headers
  • 1 x addressable LED strip header
  • 1 x RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  • 1 x S/PDIF Out header
  • 1 x Q-Flash Plus button
  • 1 x reset jumper
  • 1 x Clear CMOS jumper
  • Form Factor Micro ATX
  • 244mm x 244mm
