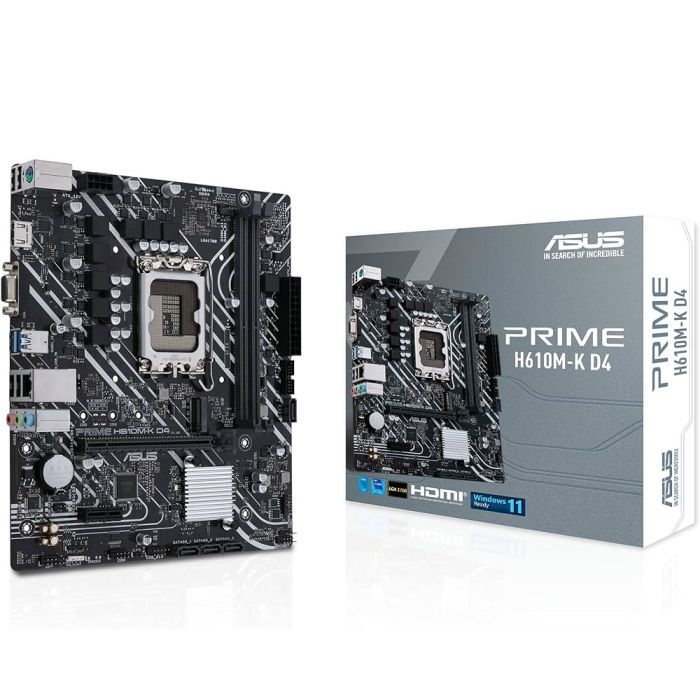

ASUS H610M-K DDR4, Socket 1700, Micro ATX, Motherboard

ASUS H610M-K DDR4, Socket 1700, Micro ATX, Motherboard - ASUS H610M-K D4

Features:

• FLEXIBILITY
  Comprehensive controls form the foundation of the ASUS Prime series. The Prime H610 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
• All-Around Energy Efficiency
  The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
• UEFI BIOS
  The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
• Advanced Tuning for Serious Tweakers
  An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
• COOLING
  Prime H610 series are engineered with an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
• Cooler by Design
  Prime H610 series feature comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS.
• Multiple Temperature Sources
  Each header can dynamically reference three thermal sensors. Fan Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• PERFORMANCE
  Prime H610 series are built to handle the additional cores and increased bandwidth of 12th Generation Intel® processors. ASUS H610 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
• Storage
  M.2 slot (up to 32 Gbps)
  Prime H610M-K D4 offers one M.2 slot that supports data-transfer speeds of up to 32 Gbps via PCIe 3.0, enabling quicker boot-up and app load times with OS or application drives.
  * Actual transmission speeds will be lower than the theoretical maximum speed.
• PCIe® 4.0
  Prime H610 motherboards are designed specifically for 12th Generation Intel® Core™ CPUs and offer PCIe® 4.0 connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
• USB 3.2 Gen 1 Type-A
  Numerous USB ports support high-end rigs loaded with peripherals, including rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.
• CUSTOMIZATION
  Prime H610 series add the nuanced details that improve every experience, exclusive codecs that provide pristine audio quality let you customize your system to create a uniquely personal look.
• Combined onboard features deliver elevated audio
  Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
• Audio Shielding
  Separates analog/digital signal domains, significantly reducing multi-lateral interference.
• Separate Audio Layer for Left and Right Tracks
  Ensures minimal crosstalk between audio paths.
• Armoury Crate
  Armoury Crate is a new software utility designed to give you centralized control of supported products, from a single intuitive interface. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. This software even features dedicated product registration and highlight to help you stay in touch with the ASUS community.
• Q-LED Core
  The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

Specifications:

• Model
  PRIME H610M-K D4


• CPU
  Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
  Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
  * Refer to www.asus.com for CPU support list.
  ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


• Chipset
  Intel® H610 Chipset


• Memory
  2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
  Dual Channel Memory Architecture
  Supports Intel® Extreme Memory Profile (XMP)
  * Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.


• Graphics
  1 x D-Sub port
  1 x HDMI® port**
  * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  ** Supports 4K@60Hz as specified in HDMI 2.1.


• Expansion Slots
  Intel® 13th & 12th Gen Processors
  1 x PCIe 4.0 x16 slot
  Intel® H610 Chipset
  1 x PCIe 3.0 x1 slot


• Storage
  Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
  Intel® H610 Chipset
  M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
  4 x SATA 6Gb/s ports
  * The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.


• Ethernet
  1 x Realtek 1Gb Ethernet


• USB
  Rear USB (Total 6 ports)
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  Front USB (Total 4 ports)
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports


• Audio
  Realtek 7.1 Surround Sound High Definition Audio CODEC*
  - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  - Supports up to 24-Bit/192 kHz playback


• Audio Features
  - Audio Shielding
  - Dedicated audio PCB layers
  * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


• Back Panel I/O Ports
  2 x USB 3.2 Gen 1 ports (2 x Type-A)
  4 x USB 2.0 ports (4 x Type-A)
  1 x D-Sub port
  1 x HDMI® port
  1 x Realtek 1Gb Ethernet port
  3 x Audio jacks
  1 x PS/2 Keyboard/Mouse combo port


• Fan and Cooling related Internal I/O Connectors
  1 x 4-pin CPU Fan header
  1 x 4-pin Chassis Fan header
• Power related Internal I/O Connectors
  1 x 24-pin Main Power connector


• Storage related Internal I/O Connectors
  1 x M.2 slot (Key M)
  4 x SATA 6Gb/s ports


• USB Internal I/O Connectors
  1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  1 x USB 2.0 header supports additional 2 USB 2.0 ports


• Miscellaneous Internal I/O Connectors
  1 x RGB header
  1 x Clear CMOS header
  1 x COM Port header
  1 x Front Panel Audio header (AAFP)
  1 x S/PDIF Out header
  1 x Speaker header
  1 x SPI TPM header (14-1pin)
  1 x 10-1 pin System Panel header


• Special Features
  ASUS 5X PROTECTION III
  - DIGI+ VRM
  - LANGuard
  - Overvoltage Protection
  - SafeSlot Core
  - Stainless-Steel Back I/O
  ASUS Q-Design
  - Q-DIMM
  - Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design
  ASUS Lighting Control
  - RGB header


• Software Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  - Performance And Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  ASUS CPU-Z
  Norton Anti-virus software (Free Trial version)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode


• BIOS
  128 Mb Flash ROM, UEFI AMI BIOS


• Manageability
  WOL by PME, PXE
• Accessories
  Cables
  2 x SATA 6Gb/s cables
  Miscellaneous
  1 x I/O Shield
  1 x M.2 ANCHOR
  Installation Media
  1 x Support DVD
  Documentation
  1 x User Guide
• Compatible Operating Systems
  Windows® 11 64-bit, Windows® 10 64-bit


• Form Factor
  mATX Form Factor
  9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )
