main product photo

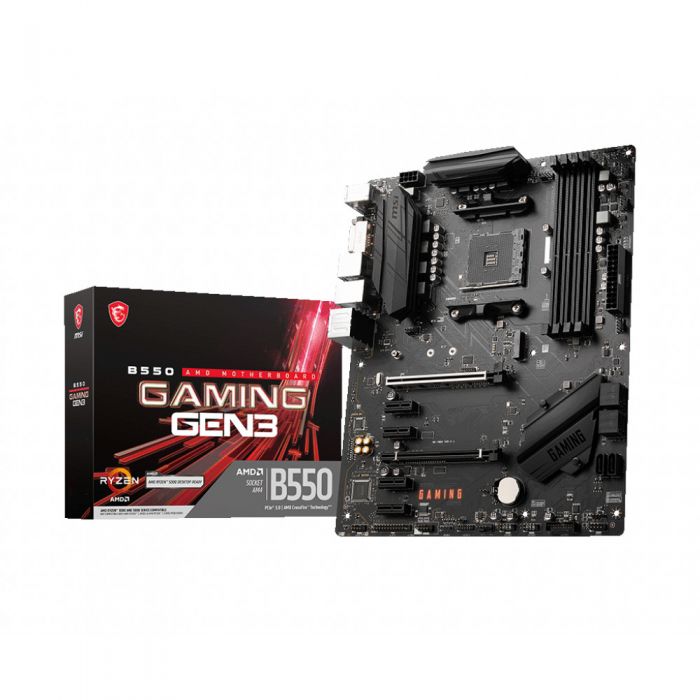

MSI B550 Gaming GEN3, sAM4, 4xDDR4, Full ATX, Motherboard

£105.00 £149.00
SKU
SK-20309
Availability: In stock
  • MSI B550 Gaming GEN3
  • Socket AM4
  • 4 x DDR4 Slots
  • 1 x PCIe 16X Slot
  • 1x M.2 slot
  • Full ATX
More Info
Add to Compare
  • CPU
    Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors Processor socket AM4
  • Chipset
    AMD B550 Chipset
  • Memory
    4x DDR4 memory slots, supporting up to 128GB 1
    Supports 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400+ MHz by A-XMP OC MODE
    1DPC 1R max speed 4400 MHz
    1DPC 2R max speed 3733 MHz
    2DPC 1R max speed 3866 MHz
    2DPC 2R max speed 3466 MHz
    Dual channel memory architecture
    Supports non-ECC UDIMM memory
    Supports ECC UDIMM memory (non-ECC mode)
    Supports un-buffered memory
  • Expansion Slots
    2x PCIe x16 slots
    PCI_E1 slot (From CPU)
    Supports PCIE 3.0 x16
    PCI_E4 1(From B550 chipset)
    Supports PCIe 3.0 x4
    4x PCIe x1 slots
    PCI_E2, E3, E5 and E6 slots (From B550 chipset)
    Supports PCIe 2.0 X1
    PCI_E4 will run x1 speed when installing devices in PCI_E2/ PCI_E3/ PCI_E5 slot.
  • Multi-GPU
    Supports AMD CrossFire Technology
  • Onboard Graphics
    1x DVI-D port, support a maximum resolution of 1920x1200 @60Hz 1
    1x HDMI 2.0b port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz 1/2
    Maximum shared memory of 16 GB
    (Available only on processors featuring integrated graphics.)
    (Graphics specifications may vary depending on the CPU installed.)
  • SATA Ports
    6x SATA 6Gb/s ports (From B550 chipset)
  • M.2 SSD Slots
    1x M.2 slot (Key M)
    M2_1 slot (From CPU)
    Supports PCIe 3.0 x4
    Supports SATA 6Gb/s
    Supports 2260/ 2280/ 22110 storage devices
  • RAID
    Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Audio
    Realtek ALC897 Codec
    7.1-Channel High Definition Audio
  • LAN
    1x Realtek RTL8111H LAN controller
  • Power Connectors
    1x 24-pin ATX main power connector
    1x 8-pin ATX 12V power connector
  • Internal USB Connectors
    1x USB 3.2 Gen 1 5Gbps connector (From B550 chipset)
    Supports additional 2 USB 3.2 Gen 1 5Gbps ports
    2x USB 2.0 connectors (From B550 chipset)
    Supports additional 4 USB 2.0 ports
  • Fan Connectors
    1x 4-pin CPU fan connector
    1x 4-pin water-pump fan connector
    4x 4-pin system fan connectors
  • System Connectors
    1x Front panel audio connector
    2x System panel connectors
    1x Chassis Intrusion connector
    1x TPM module connector
    1x Serial port connector
    1x Parallel port connector
  • Jumpers
    1x Clear CMOS jumper
  • LED Features
    2x 4-pin RGB LED connectors
    4x EZ Debug LED
  • Back panel ports
    Keyboard / Mouse
    USB 3.2 Gen 1 5Gbps Type-A
    LAN
    Audio Connectors
    Flash BIOS Button
    USB 2.0
    DVI-D
    HDMI
    USB 3.2 Gen 2 10Gbps Type-A
  • I/O Controller
    NUVOTON NCT6797 Controller Chip
  • Hardware Monitor
    CPU/ System/ Chipset temperature detection
    CPU/ System/ Pump fan speed detection
    CPU/ System/ Pump fan speed control
  • Form Factor
    ATX Form Factor
    12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • BIOS Features
    1x 256 Mb flash
    UEFI AMI BIOS
    ACPI 6.1, SMBIOS 2.8
    Multi-language
  • Software
    MSI Center
    CPU-Z MSI GAMING
    Google Chrome, Google Toolbar, Google Drive
    Norton Internet Security Solution
