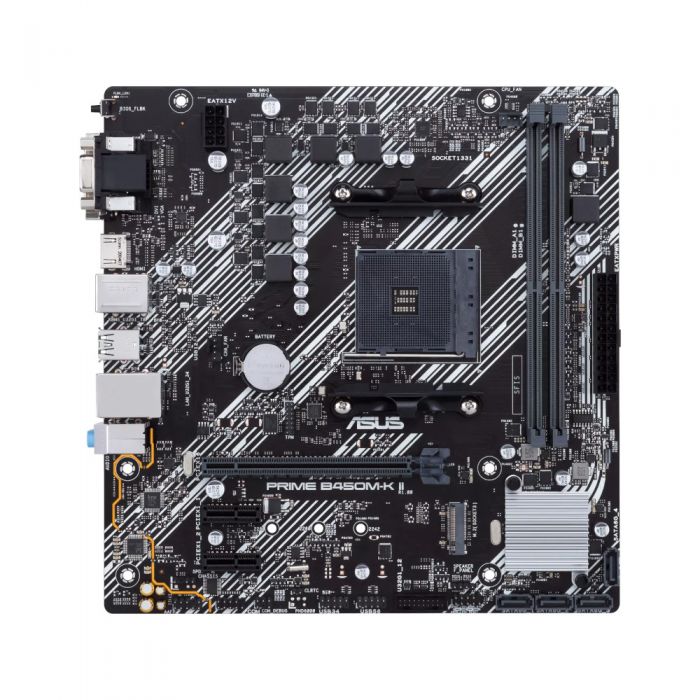

ASUS PRIME B450M-K II, mATX, DDR4, HDMI, DVI, D-SUB, Motherboard

ASUS PRIME B450M-K II, mATX, DDR4, HDMI, DVI, D-SUB, Motherboard - 90MB1600-M0EAY0

ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably.

Features:

• Tune It Your Way
  Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximising your productivity.
• UEFI BIOS
  The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.
• Advanced Tuning for Serious Tweakers
  An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various Advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.
• Cooler by Design
  PRIME B450M-K II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.
• Build on a Solid Foundation
  Prime B450M II motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.
• PCIe 3.0 M.2 (up to 32 Gbps)
  Achieve speed with onboard M.2
  M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.
• Little Things Make a Big Difference
  Prime B450M II series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive interface that let you customise your system to create a unique personal look.
• Outstanding Audio
  Combined onboard features deliver elevated audio
  Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
• Audio Shielding
  Separates analogue/digital signal domains, significantly reducing multi-lateral interference.
• Separate Layer for Left and Right Tracks
  Ensures minimal crosstalk between audio paths.
• Premium Japanese Capacitors
  Premium parts provide an immersive sound signature, with exceptional fidelity.

Specifications:

• Model
  PRIME B450M-K II
• CPU
  AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors
• Chipset
  AMD B450
• Memory
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2 x DIMM, Max. 64GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz
  Un-buffered Memory
  Dual Channel Memory Architecture
  ECC Memory (ECC mode) support varies by CPU.
  The maximum memory frequency supported varies by processor.
• Graphic
  Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors *
  1 x D-Sub
  1 x DVI-D
  1 x HDMI 2.0b
  *Graphics specifications may vary between CPU types.
• Expansion Slots
  3rd/2nd/1st Gen AMD Ryzen™ Processors
  1 x PCIe 3.0 x16 (x16 mode)
  2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x8 mode)
  AMD Athlon™ with Radeon™ Vega Graphics Processors
  1 x PCIe 3.0 x16 (x4 mode)
  AMD B450 chipset
  2 x PCIe 2.0 x1
• Storage
  Total supports 1 x M.2 slot(s) and 4 x SATA 6Gb/s ports
  3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  Athlon™ with Radeon™ Vega Graphics Processors :
  1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
  AMD B450 chipset :
  4 x SATA 6Gb/s port(s),
  Support Raid 0, 1, 10
• LAN
  Realtek® RTL8111H
  ASUS LANGuard
• Audio
  Realtek ALC887/897 7.1-Channel High Definition Audio CODEC *
  - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
  Audio Feature :
  - LED-illuminated design
  - Audio Shielding
  - Dedicated audio PCB layers
  - Premium Japanese audio capacitors
  * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
• USB Ports
  Rear USB Port ( Total 6 )
  4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
  2 x USB 2.0 port(s)(2 x Type-A)
  Front USB Port ( Total 6 )
  2 x USB 3.2 Gen 1 port(s)
  4 x USB 2.0 port(s)
• Software Features
  ASUS Exclusive Software
  Armoury Crate
  AI Suite 3
  - Performance and Power Saving Utility
  TurboV EVO
  EPU
  DIGI+ VRM
  Fan Xpert
  PC Cleaner
  - EZ update
  - System Information
  ASUS CPU-Z
  AI Charger
  ASUS EZ Installer
  DAEMON Tools
  Norton Anti-virus software (Free Trial for 60 days)
  WinRAR
  UEFI BIOS
  ASUS EZ DIY
  - ASUS CrashFree BIOS 3
  - ASUS EZ Flash 3
  - ASUS UEFI BIOS EZ Mode
• ASUS Special Features
  ASUS 5X PROTECTION III
  - ASUS DIGI+ VRM
  - ASUS LANGuard
  - ASUS Overvoltage Protection
  - ASUS SafeSlot Core
  - ASUS Stainless-Steel Back I/O
  ASUS Q-Design
  - ASUS Q-DIMM
  - ASUS Q-Slot
  ASUS Thermal Solution
  - Aluminum heatsink design
  ASUS EZ DIY
  - BIOS FlashBack™ button
  - BIOS FlashBack™ LED
  ASUS Lighting Control
• Back I/O Ports
  1 x PS/2 keyboard/mouse combo port(s)
  1 x DVI-D
  1 x D-Sub
  1 x HDMI
  1 x LAN (RJ45) port(s)
  4 x USB 3.2 Gen 1 (blue) Type-A
  2 x USB 2.0
  3 x Audio jack(s)
  1 x BIOS FlashBack™ Button(s)
• Internal I/O
  1 x CPU Fan connector(s) (1 x 4 -pin)
  1 x Chassis Fan connector(s) (1 x 4 -pin)
  1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin)
  2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
  1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
  1 x SPI TPM header
  1 x COM port(s) connector(s)
  4 x SATA 6Gb/s connector(s)
  1 x S/PDIF out header(s)
  1 x 24-pin EATX Power connector(s)
  1 x 8-pin ATX 12V Power connector(s)
  1 x Front panel audio connector(s) (AAFP)
  1 x System panel(s)
  1 x Clear CMOS jumper(s)
  1 x COM port header
  1 x Speaker connector
• Accessories
  User´s manual
  I/O Shield
  2 x SATA 6Gb/s cable(s)
  1 x M.2 Anchor
  1 x Supporting DVD
• BIOS
  256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
  Windows® 10 64-bit
  Windows® 7 64-bit *
• Form Factor
  mATX Form Factor
  8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )
• Note
  *To support Windows 7 64-bit, please install an AMD Ryzen™ 2nd Generation or Ryzen™ 1st Generation Processor.
