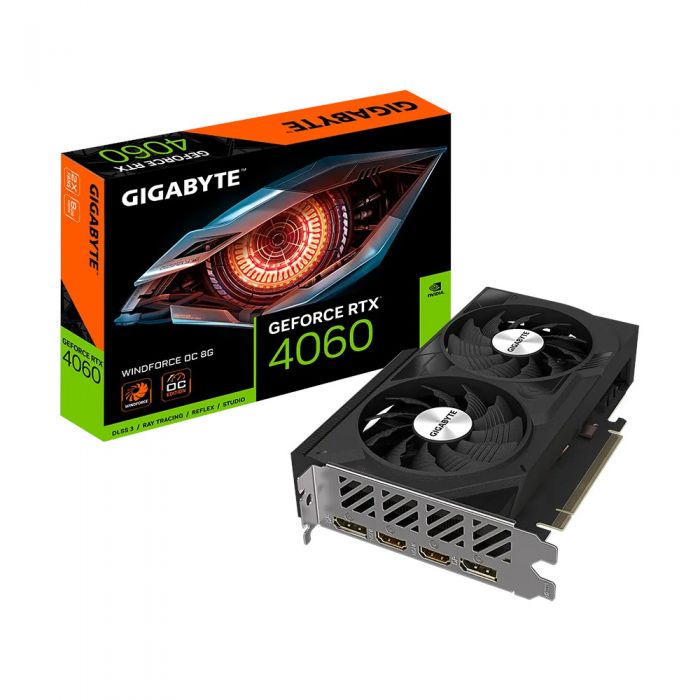

Gigabyte NVIDIA GeForce RTX 4060 WINDFORCE OC 8GB GDDR6 Ray-Tracing

Gigabyte NVIDIA GeForce RTX 4060 WINDFORCE OC 8GB GDDR6 Ray-Tracing - GV-N4060WF2OC-8GD

Features:

• The Ultimate Platform for Gamers and Creators
  Powered by GeForce RTX 40 Series and DLSS 3
• New Streaming Multiprocessors
  Up to 2x performance and power efficiency
• Fourth-Gen Tensor Cores
  Up to 4x performance with DLSS 3 vs. brute-force rendering
• Third-Gen RT Cores
  Up to 2x ray tracing performance
• Cutting-Edge GPUs
  NVIDIA Ada Lovelace architecture
• Realistic and Immersive Graphics
  Dedicated Ray Tracing Cores
• AI-Accelerated Performance
  NVIDIA DLSS 3
• Game-Winning Responsiveness
  NVIDIA Reflex low-latency platform
• Built for Live Streaming
  NVIDIA Encoder
• AI-Enhanced Voice and Video
  RTX Video Super Resolution and NVIDIA Broadcast
• Fast-Track Your Creativity
  NVIDIA Studio
• Performance and Reliability
  Game Ready and Studio Drivers

Cooling System Features:

• WINDFORCE COOLING SYSTEM
  The WINDFORCE cooling system features two 80mm unique blade fans, alternate spinning, a composite copper heat pipe that directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
• ALTERNATE SPINNING
  Reduce the turbulence of adjacent fans and increase airflow pressure.
• SMOOTH AIRFLOW
  GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
• 3D ACTIVE FAN
  The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
• UNIQUE BLADE FAN
  The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
• GRAPHENE NANO LUBRICANT
  Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
• SCREEN COOLING
  Extended heatsink allows air to pass through, providing better heat dissipation.
• OPTIMIZED THERMAL MODULE
  The pure copper heat pipe makes direct contact with the GPU to facilitate enhanced heat transfer to the heatsink, optimizing the cooling efficiency of the graphics card.
• PROTECTION BACK PLATE
  The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

Ultra Durable:

• ULTRA COOLING
  Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
• LOW POWER LOSS
  Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
• LONGER LIFE
  Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
• FRIENDLY PCB DESIGN
  Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specifications:

• Graphics Processing
  GeForce RTX™ 4060
• Core Clock
  2475 MHz (Reference card: 2460 MHz)
• CUDA® Cores
  3072
• Memory Clock
  17 Gbps
• Memory Size
  8 GB
• Memory Type
  GDDR6
• Memory Bus
  128 bit
• Card Bus
  PCI-E 4.0
• Digital max resolution
  7680x4320
• Multi-view
  4
• Card size
  L=192 W=120 H=41 mm
• PCB Form
  ATX
• DirectX
  12 Ultimate
• OpenGL
  4.6
• Recommended PSU
  450W
• Power Connectors
  8 pin*1
• Output
  DisplayPort 1.4a*2
  HDMI 2.1a*2
• Accessories
  Quick guide
