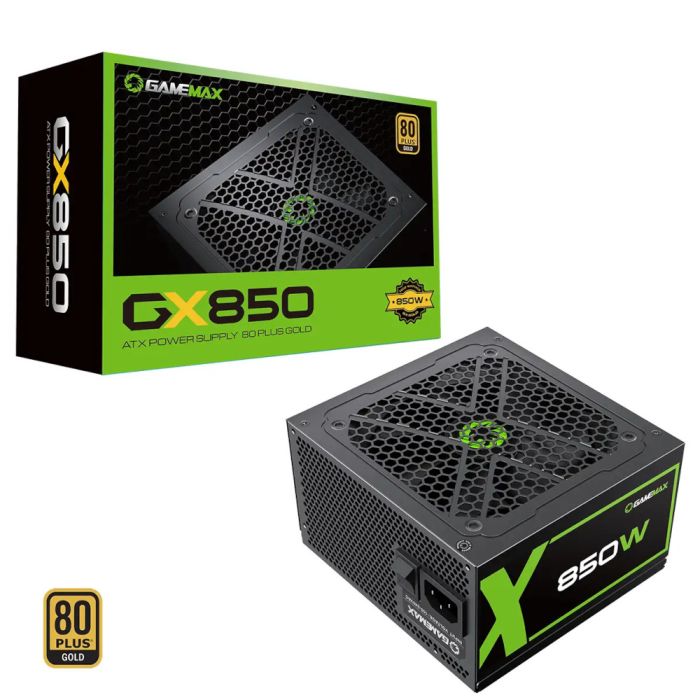

GameMax GX850W Fully Modular 80+ Gold, Power Supply, 120mm Fan

Introducing a new series of GameMax power supply the GX-850 with its 80 PLUS Gold certification brings unbeatable power and a superior performance to your Gaming PC.

The GX-850 partners high-end cooling together with premium components to provide an incredibly silent, top performing product perfect for primary gamers.

This intelligent fully modular unit features an instinctive fan design to make cooling more productive and guarantees a flawless performance. On the inside only the best components are used, and a full suite of top tier circuit protections ensures that the power that is delivered to your system is safe and reliable in any environment are used.

GameMax have created the ultimate gaming Power supply, the GX-850 is the best choice for high-end gaming PCs and Esports environments.

Features:

• 80 PLUS Gold Certification
  Trusted with an 80 PLUS Gold certification, this powerful power supply has a high energy efficiency conversation of over 90 percent. The Gold efficiency results in less heat, a quieter operation and increased reliability.
• Intelligent Temperature Control Technology
  The 120mm Fluid Dynamic Bearing fan starts when the power consumption is higher than 20 percent and stops when it is lower for a more efficient cooling operation and lower energy costs.
• 105 Degree Celsius Mainstream Capacitors
  Delivering a top performance and the reliability to match with the use of high-quality Mainstream 105 Degree Celsius capacitors. Other premium components help deliver continuous and stable power, providing the greatest durability and highest stability.
• Fully Modular Cable Configuration
  A Fully Modular cable management design lets you use only the cables you need. Improved airflow and save space and create a cleaner-looking build with the low-profile flat black cables.
• Hardware Protection
  A full line up top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), UVP (Under Voltage Protection) & OTP (Over Temperature Protection).
• Warranty
  The GameMax GX-850 PSU comes with 2-year manufacturer warranty.

Connectors:

• 20+4 Pin Main Connectors: 1 (Modular)
• 4+4 Pin 12V Connectors: 2 (Modular)
• SATA Connectors: 6 (Modular)
• 4-Pin Molex Connectors: 3 (Modular)
• 6+2 Pin PCI-e Connectors: 4 (Modular)

Detailed Specifications:

• Dimensions:
  150mm x 140mm x 85mm (W x H x D)
• Input Voltage:
  100-240 VAC
• Input Current:
  15 - 8A
• Input Frequency Range:
  47-63Hz
• PFC:
  Active
• Power Good Signal:
  100-500 ms
• Hold Up Time:
  >17ms
• Efficiency:
  >92%
• MTBF:
  > 100,000 Hours
• Protection:
  OVP / OPP / OCP / SCP / OTP / UVP
• Power:
  850W
• Operation Temperature:
  0-40°C
• Safety:
  CE / FCC / CB / EAC / CCC / TUV / cTUVus / UKCA
• Cooling:
  120mm Temperature-Controlled Fluid Dynamic Bearing Fan
• Noise:
  < 25dBa
• 80 Plus Certified:
  Yes - 80 Plus Gold

General Specifications

• Manufacturer Part Number:
  GMX-GX850
• EAN Number:
  6931858768146
• Has Mains Plug:
  No
• Colour:
  Black
• What's In The Box:
  PSU
  Modular Cables
  Manual
  Screws
  Cable Ties
• Unit (Product) Dimensions (mm):
  150mm x 140mm x 85mm (W x H x D)
• Packaging Dimensions (mm):
  294mm x 210mm x 126mm (W x H x D)
• Net Weight (KGs):
  1.21 KGs
• Gross Weight (KGs):
  2 KGs
