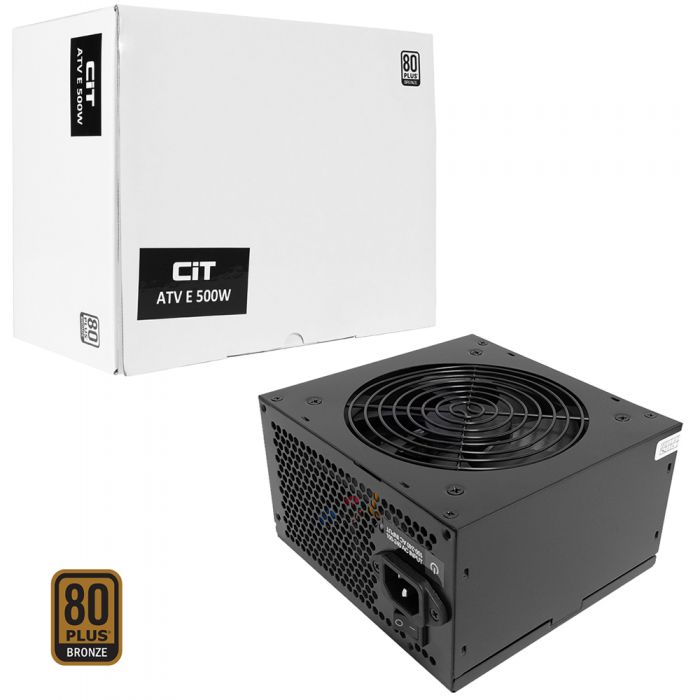

CiT 500W ATV ECO 12cm Fan APFC 80 Plus Bronze PSU - 500W ATV E , 5055492409805
£36.99
£39.99
SKU
SK-20912
Availability:
Out of stock
- 80 Plus Certification - The CiT ATV E is 80 PLUS Bronze certified delivering up to 85 percent for high efficiency.
- All Black - The all-black PSU casing and cable configuration the ATV E effortlessly fits and blends into the rest of your system to add a sleek and stealth finish.
- Wired Power Supply - Flat black cables make it easy to connect everything together and easily manage and save the space inside the chassis.
- Single 12V Rail Output - Single 12V rail for high compatibility and extreme high current output.
- Active PFC - CiT have used an active PFC ensures small and light components with great flexibility and control allowing you to operate in universal input range for an excellent performance.
- Low Noise - The ATV E includes a 12cm black fan provides excellent cooling and low-noise.
- Hardware Protection - Top tier circuit protections keeps your build running strong and your hardware safe - OVP (Over Voltage Protection), OPP (Over Power Protection) & SCP (Short Circuit Protection).
- Warranty - The CiT ATV E comes with 2 Years Warranty.
Specifications
- AC INPUT: 100-240 VAC 8A 50-60Hz
- DC: +3.3V, +5V, +12V1, -12V, +5VSB
- Output: 16A, 18A, 38A, 0.3A, 2.5A
- Max: 500W
- 20+4 Pin Main Connectors: 1
- 4+4 Pin 12V Connectors: 1
- SATA Connectors: 6
- 4-Pin Molex Connectors: 2
- 6+2 Pin PCI-e Connectors: 2
Detailed Specifications
- Dimensions: 150mm x 85mm x 140mm (W x H x D)
- Input Voltage: 100-240 VAC
- Input Current: 8A
- Input Frequency Range: 50-60Hz
- PFC: Active PFC
- Power Good Signal: 100-500ms
- Hold Up Time: Greater than or equal to 10ms
- Efficiency: > 82% (85% max)
- MTBF: 100,000 Hours
- Protection: OVP / OLP / OPP / SCP
- Power: 500W
- Operation Temperature: 0-40°C
- Safety: CE / CCC / CB / UKCA / ROHS
- Cooling: 120mm Black Fan
- Noise: 38dBA
- 80 Plus Certified: Yes - 80 Plus Bronze
