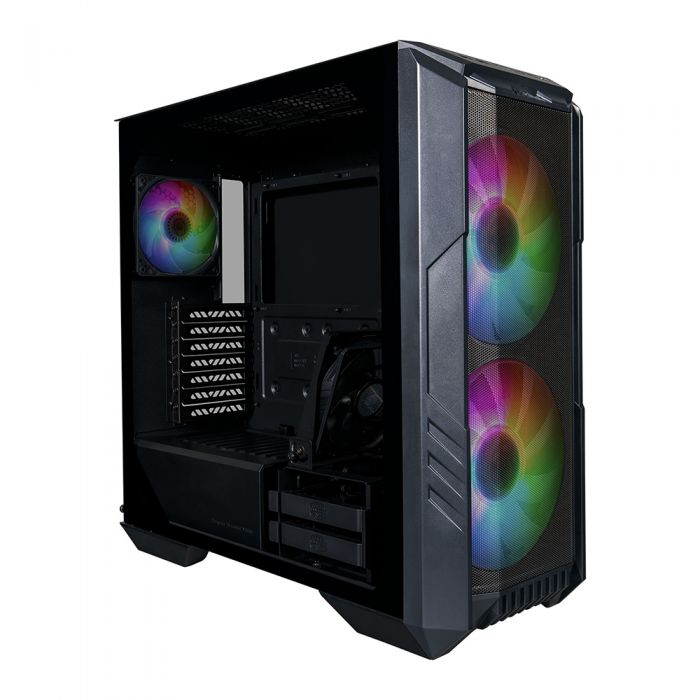

Cooler Master HAF 500 ARGB Mid Tower PC Case, Tempered Glass

Core Chassis Specifications

• Case Edition HAF 500
• Case Form Factor Mid Tower
• Motherboard Form Factor
• ATX
• E-ATX
• MicroATX
• SSI CEB
• Reverse Connection Compatible No

I/O, Bays & Expansion

• Front/Side/Top Panel I/O: 1 x HD Audio, 2 x USB 3.2 Gen1 Type-A, 1 x USB 3.2 Gen2 Type-C
• Drive Bays: 2 x 2.5" Internal, 2 x 2.5"/ 3.5" Internal
• Standard Expansion Slots 7

Fans & Filters

• Fan Bays 8 x 120mm / 4x 140mm / 4x 200mm
• Fans Included
• 1 x 120mm Black GPU Fan
• 1 x 120mm w/ Addressable RGB LEDs
• 2 x 200mm w/ RGB LEDs
• Fan Controller/Hub
• Dust Filters: Bottom, Top

Liquid Cooling Support

• Front Radiator Compatibility 1 x 120/140/200/240/280/360mm
• Top Radiator Compatibility 1 x 120/140/240/280/360mm
• Bottom Radiator Compatibility
• Rear Radiator Compatibility 1 x 120mm
• Side Radiator Compatibility

Clearances

• Max CPU Cooler Height 167 mm
• Max GPU Card Length 410 mm
• Cable Routing Space 30 mm

Side Panels

• Window/s Yes
• Window Configuration 1 x Main Side
• Window Construction Tempered Glass
• LED Lighting Functionality
• LED Lighting Yes
• LED Lighting Emitters Included Addressable LED Fan/s
• LED Lighting Colour RGB
• LED Lighting Support & Control

Power Supply Compatibility

• PSU Included No
• PSU Support ATX
• PSU Mounting Location Bottom Mount, Rear
• Max PSU Length 180 mm

Chassis Physical Specifications

• Colour Black
• Chassis Construction Materials Plastic / Steel / Tempered Glass
• Dimensions 224 x 510 x 516 (WxHxD mm)
• Weight 9.5 kg (Approx)
