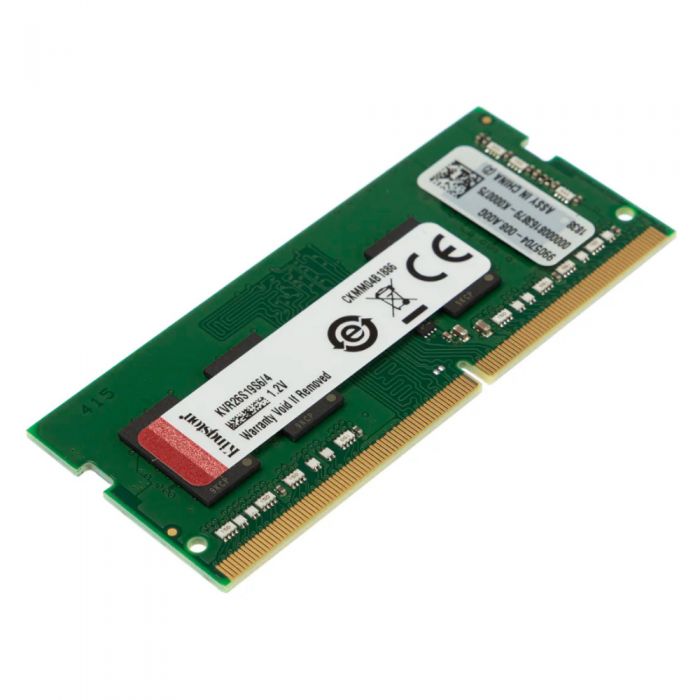

4GB Kingston ValueRAM DDR4-2666MHz SODIMM Memory
£26.99
£29.99
SKU
SK-19978
Availability:
Out of stock
- Kingston ValueRAM
- 4GB (1 x 4GB)
- No Heatsink
- DDR4-2666MHz
- SODIMM Laptop Ram
- 288-pin
- CL19
- 1.2V
- KVR26S19S6/4
- CL(IDD) - 19 cycles
- Row Cycle Time (tRCmin) - 45.75ns(min.)
- Refresh to Active/Refresh Command Time (tRFCmin) - 350ns(min.)
- Row Active Time (tRASmin) - 32ns(min.)
- Maximum Operating Power - TBD W*
- UL Rating - 94 V - 0
- Operating Temperature - 0o C to +85o C
- Storage Temperature - -55o C to +100o C
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Single-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 8 internal banks; 2 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.18" (30.00mm)
- RoHS Compliant and Halogen-Free
